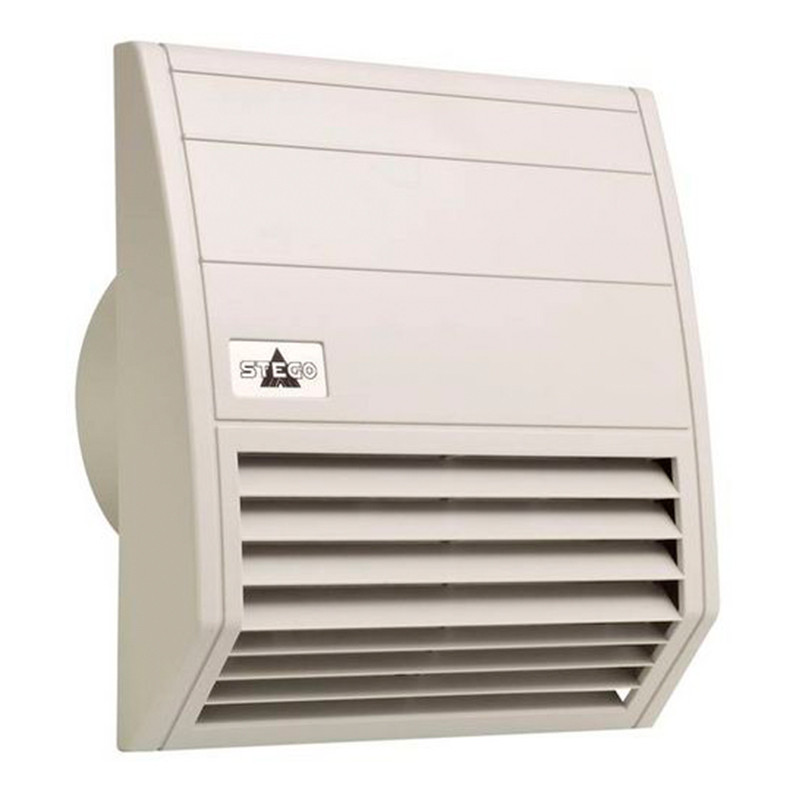

Ventilator with filter - FF 018:21 to 102 m³/h series
  • Ventilator with filter - FF 018:21 to 102 m³/h series

Photos are for informational purposes only. View product specification

Manufacturer: STEGO

Ventilator with filter - FF 018:21 to 102 m³/h series

Ventilator with filter - FF 018:21 to 102 m³/h series




  • Very low noise
  • Minimal depth in enclosure
  • Functional design
  • Time-saving installation
  • UV resistant

Axial fan, ball bearing service life 50,000h at +25°C (+77°F), 65% RH fan body aluminium, rotor plastic
Connection 2 wires with pressure clamps 2.5mm², length 100mm
Casing (filter fan and exit filter) plastic according to UL94 V-0, light grey
Mounting frame with double-sided industrial adhesive band for fixing to the
outside of enclosure; certain operating circumstances can make
the additional use of screws necessary (see drilling template);
a template for the enclosure cut-out is included in the delivery
of the filter fans
Filter mat G4 acc. to DIN EN 779, filtering degree 94%
Filter material synthetic fibre with progressive construction, temperature resistant to +100°C, self-extinguishing class F1, moisture resistant to 100% RH, reusable - cleaning by washing or vacuuming
Operating/Storage temperature - 45°C - +70°C
Protection class IP54* /1 (z przewodem ochronnym)

Klimatyzacja szafy rozdzielczej przy użyciu wentylatora z fltrem i fltra wyjściowego
Special features
  • The self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet.
  • Functional design of the intake and exit fan hoods very effectively prevents direct intrusion of falling water and dust.
    The advantage is that the filter mat does not get so quickly contaminated with dirt and thus does not need to
    be exchanged so often.
  • The air channeling makes the filter fan particularly quiet in operation.
  • Functional and modern design enables time-saving assembly and maintenance.
  • The direction of air flow can easily be switched by reversing the axial fan (sizes 1 to 3).
  • EMC versions and other voltages on request.

Time-saving assembly and maintenance

Wentylatory z fltrem montuje się I podłącza od zewnątrz w prosty sposób.

Filter fans are easily installed by one person from outside the cabinet.
1.) Make cut-out in the cabinet wall. The cut edge of the cabinet opening should be free of dirt, filings and grease. A template for the enclosure cut-out is included in the delivery of the filter fan.
2.) Remove protective film from the sealing strips on the mounting frame. Press mounting frame into the cabinet opening. The frame stays permanently in the cabinet. (For size 176mm and up we recommend additional screw fixing.)
3.) Electrically connect the axial fan using the clip connectors. Push the unit into the mounting frame. Fix using screws.
4.) Insert the filter mat in the hood. Clip on. Finished.
Changing the filter mat or fan is quickly done by one person. To change the filter mat simply remove the filter hood, insert the new mat and snap the hood back again. No tools required. Maintenance of the fan can easily be done without removing the mounting frame (2).





Art. No.Operating
voltage
Air volume,
free flow
Air volume
with
exit filter
Current
consumption
Power
consumption
Average noise level
(DIN EN ISO 4871)
Depth in
enclosure
Enclosure
cut-out
Weight
(approx.)
Approvals

01800.0-00

AC 230 V, 50 Hz 21 m3/h 16 m3/h 80 mA 13W 31 dB (A) 45 mm 97x97 mm +0,4 0,60 kg VDE+UL File No. E234324

01801.0-00

AC 230 V, 50 Hz 55 m3/h 42 m3/h 100 mA 15W 40 dB (A) 58 mm 125x125 mm+0,4 1,00 kg VDE+UL File No. E234324

01802.0-00

AC 230 V, 50 Hz 102 m3/h 68 m3/h 100 mA 15W 39 dB (A) 86 mm 176x176 mm+0,4 1,30 kg VDE+UL File No. E234324

01800.0-01

AC120V, 60Hz* 21 m3/h 16 m3/h 160 mA 13W 31 dB (A) 45 mm 97x97 mm +0,4 0,60 kg UL File No. E234324

01801.0-01

AC120V, 60Hz* 55 m3/h 42 m3/h 180 mA 15W 40 dB (A) 58 mm 125x125 mm+0,4 1,00 kg UL File No. E234324

01802.0-01

AC120V, 60Hz* 102 m3/h 68 m3/h 180 mA 15W 39 dB (A) 86 mm 176x176 mm+0,4 1,30 kg UL File No. E234324
Uwaga
*Urządzenia pracujące pod napięciem AC 120 V, 60 Hz posiadają wydajność wyższą o ok. 15%

Prosty w konserwacji wentylator z fltrem Seria FF 018

Filtry wyjściowe Seria EF 118


Rozmieszczenie otworów ramki nośnej

EXIT FILTER EF 118
Art. NoDepth in enclosureEnclosure cut-outWeight (approx.)Filter matProtection type

11800.0-00

16 mm 97 x 97 mm + 0,4 0,30 kg G4 acc. to DIN EN 779, filtering degree 94% IP54*

11801.0-00

16 mm 125x125 mm+ 0,4 0,40 kg G4 acc. to DIN EN 779, filtering degree 94% IP54*

11802.0-00

16 mm 176x176 mm+ 0,4 0,60 kg G4 acc. to DIN EN 779, filtering degree 94% IP54*

FILTER MAT FM 086/FFM 086
Filter mat89 x 89 mm118x118mm168 x 168 mm
G4 (1 packaging unit = 3 pcs.) Art. No. 08600.0-00 Art. No. 08601.0-00 Art. No. 08602.0-00
F5 (1 packaging unit = 3 pcs.) Art. No. 08603.0-00 Art. No. 08604.0-00 Art. No. 08605.0-00

Filter fan with air flow sensing device 218 FELT
Air flow sensor built into the grille protects the toes fan FLTR, eg. Art. No. 21800.0-00

Art. No.Operating
voltage
Air volume,
free flow
Air volume
with
exit filter
Current
consumption.
Power
consumption
Average noise level
(DIN EN ISO 4871)
Depth in
enclosure
Enclosure
cut-out
Weight
(approx.)

21800.0-00

AC 230 V, 50 Hz 21 m³/h 16m³/h 80 mA 13W 31 dB (A) 45 mm 97 x 97 mm + 0,4 0,60 kg

21801.0-00

AC 230 V, 50 Hz 55 m³/h 42 m³/h 100mA 15W 40 dB (A) 58 mm 125x125 mm+ 0,4 1,00 kg

21802.0-00

AC 230 V, 50 Hz 102m³/h 68 mv/h 100mA 15W 39 dB (A) 86 mm 176x176 mm+ 0,4 1,30 kg

21800.0-01

AC120V, 60 Hz 21 m³/h 16m³/h 160mA 13W 31 dB (A) 45 mm 97 x 97 mm + 0,4 0,60 kg

21801.0-01

AC120V, 60 Hz 55 m³/h 42 m³/h 180mA 15W 40 dB (A) 58 mm 125x125 mm+ 0,4 1,00 kg

21802.0-01

AC120V, 60 Hz 102  m³/h 68 m³/h 180mA 15W 39 dB (A) 86 mm 176x176 mm+ 0,4 1,30 kg
