Voltage transducer DVC 1000-P
  • Voltage transducer DVC 1000-P

Photos are for informational purposes only. View product specification

Manufacturer: LEM

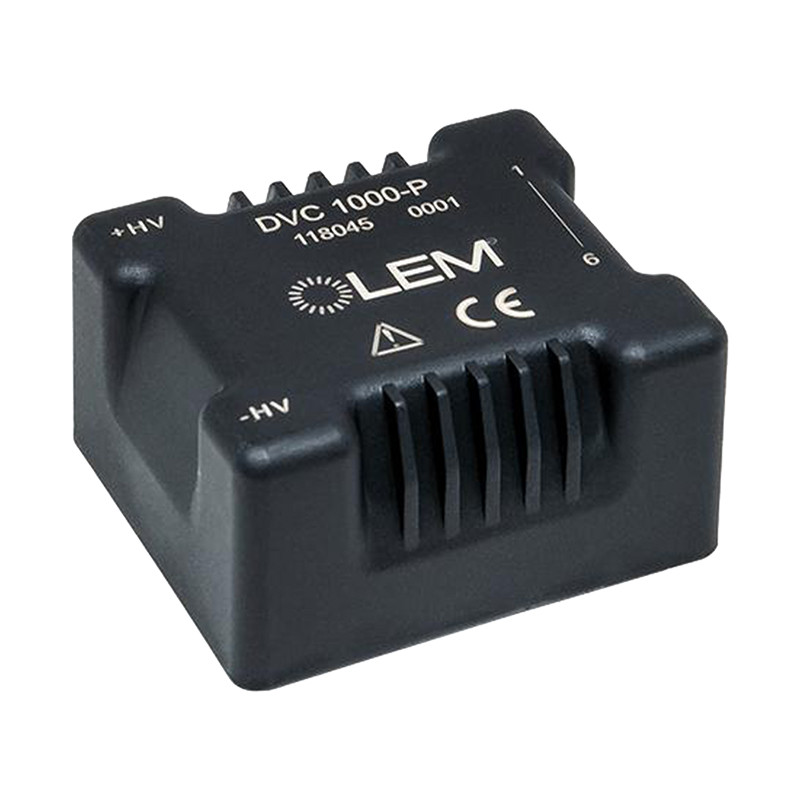

Voltage transducer DVC 1000-P

Voltage transducer DVC 1000-P

For the electronic measurement of voltage: DC, AC, pulsed..., with galvanic separation between the primary and the secondary circuit.

Features:

  • Bipolar and insulated measurement up to 1500 V
  • Voltage output
  • PCB mount
  • 8 pins
  • 5 V unipolar power supply


Advantages:

  • Low consumption and low losses
  • Compact design
  • Very low sensitivity to common mode voltage variations
  • Excellent accuracy (offset, sensitivity, linearity)
  • Low temperature drift
  • High immunity to external interferences

Applications:

  • Single or three phase inverters
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Uninterruptible Power Supplies (UPS)
  • Power supplies for welding applications
  • Auxiliary converters
  • Substations
  • Traction (trackside and onboard)
  • Industrial

Standardy:

  • EN 50155: 2007
  • EN 50121-3-2: 2015
  • EN 50124-1: 2001
  • IEC 61010-1: 2010
  • IEC 61800-1: 1997
  • IEC 61800-2: 2015
  • IEC 61800-3: 2017
  • IEC 61800-5-1: 2007
  • IEC 62109-1: 2010


Electrical data
Primary nominal RMS voltage1000 V
Primary voltage, measuring range±1500 V
Measuring resistance2000 Ω
Secondary nominal RMS voltage3,83 V
Secondary voltage+0,5…+4,5V
Supply voltage5 VDC +/-5%
Current consumption35 mA
Sensitivity1,333 mV/V
Sensitivity error±0,8%
Thermal drift of sensitivity±0,4%
Linearity error±0,2%
Overall accuracy±1%, 25oC; 100 % tested in production;
±1,5%, −40 … 85 °C
Reaction time @ 10 % of VP N1,7 µs
Response time @ 90 % of VP N10 µs
Frequency bandwidth47 kHz (-3 dB)
26 kHz (-1dB)


Environmental and mechanical characteristics
Ambient operating temperature-40oC – 85oC
Ambient storage temperature-50oC – 90oC
Mass22 g


Insulation coordination
RMS voltage for AC insulation test, 50 Hz, 1 min4,2 kV
Impulse withstand voltage 1.2/50 μs7,84 kV
Partial discharge RMS test voltage (qm < 10 pC)1,5 kV
Insulation resistance200 MΩ


Absolute maximum ratings
Maximum supply voltage (VP = 0 V, 0.1 s)6 V
Maximum supply voltage (working) (−40 … 85 oC)5,25 V
Maximum primary voltage (−40 … 85 oC)1500 V
Maximum steady state primary voltage (−40 … 85 oC)1000 V

Dimensions
