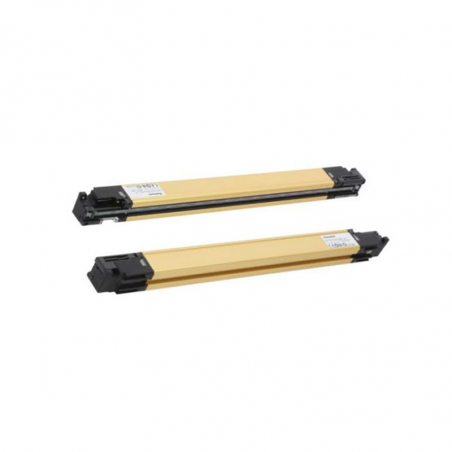

Barrière de sécurité optique miniature Série SF4C
  • Barrière de sécurité optique miniature Série SF4C

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Panasonic

Barrière de sécurité optique miniature Série SF4C

Type 4 PLe SIL3
• Type IV (according to: PN-EN-954-1)
• SIL CL3 PL e (new standards: EN13849-1, EN62061)
• Small dimensions (Width 30mm, Thickness 13mm)
• Response time (7ms)
• Hand protection(25mm)
• External contact control(EDM)• Self interference protection
• Build in 2 NC contacts
• PNP or NPN outputs

Type Hand protection
Model SF4C-H8 SF4C-H12 SF4C-16 SF4C-H20 SF4C-H24 SF4C-H28 SF4C-H32
Height 160 mm 240 mm 320 mm 400 mm 480 mm 560 mm 640 mm
Beam quantity 8 12 16 20 24 28 32
Range 0,1 do 3 m
Resolution 25 mm
Power supply 24 VDC +/-10%
Output type PNP / NPN
Response time State OFF: 7ms, State ON: 90 ms
Dimensions W30 x height x D13 mm

Increased operation area

Build in signalizers
It is possible to connect protection devices like stop button or door switch.

Cables and assembly grips in delivery
