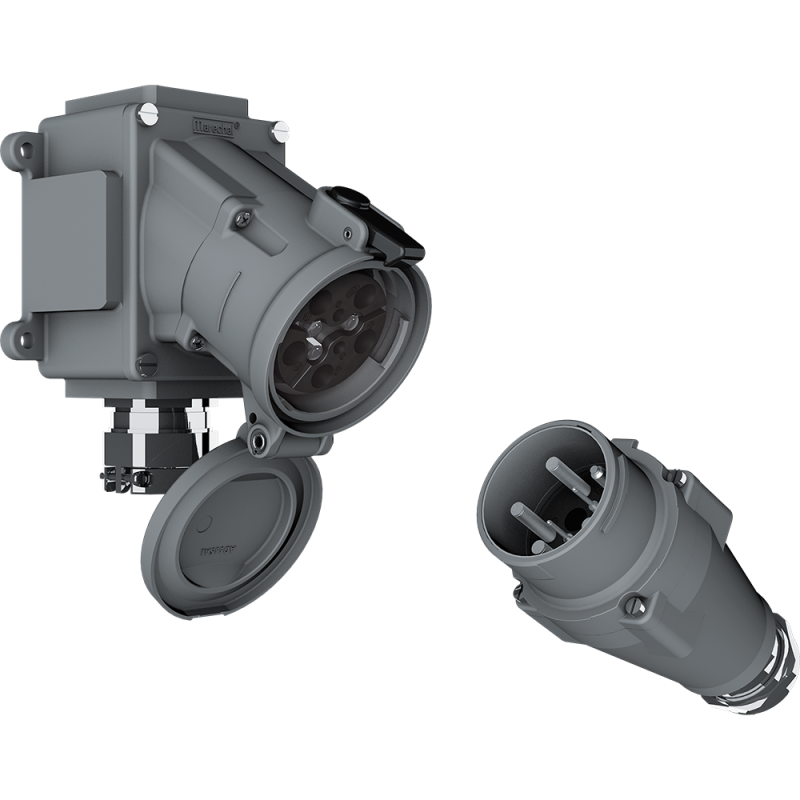

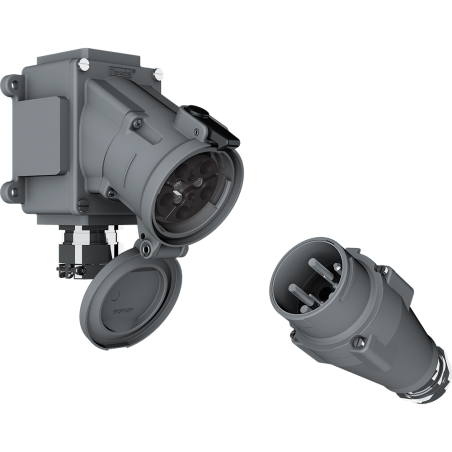

DS High-Temperature Plug and Socket (125 A, 440 V) – Extreme Heat Operation

This high-temperature DS plug and socket is approved for normal operation at continuous ambient temperatures up to 240°C. Therefore, the connector can be used to power electrical devices located near intense heat sources: machinery, industrial installations, steel mills, metallurgical plants, and other facilities subject to extreme heat conditions. This ensures a reliable electrical connection with 125 A and 440 V ratings, even in the harshest environments.

Key Features and Technical Parameters

The DS High Temperature series is designed to meet the demands of heavy and process industries, offering thermal and mechanical durability.

• High temperature environment: continuous operation up to 240 °C.
• Rated current: 125 A.
• Rated voltage: 440 V.
• Metal casing, mechanical resistance IK09.
• Automatic sealing class: IP44.

Compliance with standards and Certificates

DS connectors guarantee compliance with key European directives and standards, as well as occupational safety regulations.

• Compliance with the European Low Voltage Directives (LVD) and RoHS (CE marking) and the European REACH Regulation.
• Ensures compliance of electrical machines with the European Machinery Directive regarding disconnectors.
• Ensures compliance of electrical installations with the decrees of August 30, 2010, September 22, 2010, and the implementing decrees of the French Labor Code regarding health and safety at work when using electrical installations.
• Ensures compliance of electrical installations with national regulations on worker protection in Belgium, Spain, and the Netherlands. Italy.
• Ensures compliance of electrical installations with IEC/HD 60364 and NF C 15-100 standards.
