AC radialiniai ventiliatoriai
  • AC radialiniai ventiliatoriai

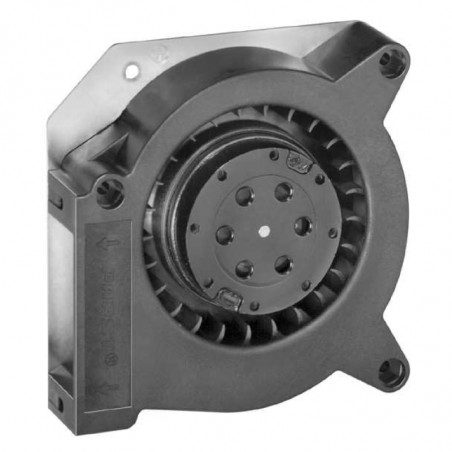

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

AC radialiniai ventiliatoriai

TypeEfficiency
[m3/h]
Voltage
[VDC]

Noise level
[dB(A)]
bearingPower
[W]

Operation temperature
[°C]
Operation time @.
[40°C/h]
Air flow direction*Terminal type
slide    ball
SERIES RL90 /  121 x 121 x 3 7 [mm]
RL90-18/50 40 230/50 54   20 -30 do 50 37500 R
RL90-18/56 40 230/50 54   + 20 -30 do 70 37500 R
RL90-18/00 42 115/60 58   19,5 -10 do 60 37500 R
RL90-18/06 42 115/60 58   + 19,5 -30 do 85 37500 R
SERIESRG90 /  135 x 135 x 3 8 [mm]
RG90-18/50 54 230/50 -   22 -30 do 60 35000 R
RG90-18/56 54 230/50 -   + 22 -30 do 60 35000 R L
RG90-18/00 47 115/60 -   22 -30 do 65 35000 R
RG90-18/06 47 115/60 -   + 22 -30 do 65 35000 R
SERIESRG125 /  180 x 180 x  40 [mm]
RG125-19/56 86 230/50 -   + 20 -30 do 70 37500 R
RG125-19/06 94 115/60 -   + 19 -30 do 80 40000 R
SERIESRG160 /  220 x 220 x  56 [mm]
RG160-28/56S 202 230/50 -   + 47 -30 do 70 30000 R L
RG160-28/06S 223 115/60 -   + 50 -30 do 80 27500 R L
SERIES RER12 5 / 138 Æ x 4 0 [mm]
RER125-19/56 104 230/50 -   + 19 -30 do 60 37500 R
RER125-19/06 115 115/60 -   + 18 -30 do 70 40000 R
SERIES RER16 0 / 176 Æ x 5 4 [mm]
RER160-28/56S 234 230/50 -
