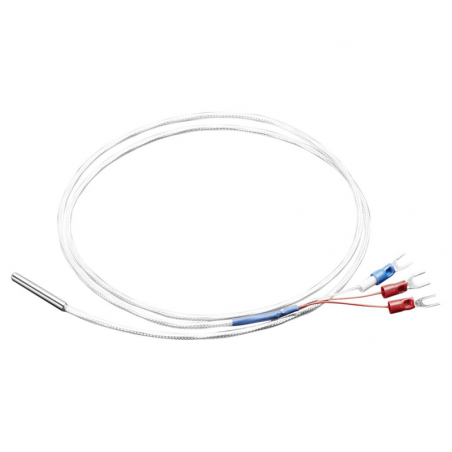

Miniatiūrinis tiesus varžos jutiklis ACT-26

Mini straight resistant sensor used for precise liquid and gas mediums temperature measurement. Temperature range -50°C - +250°C. Protection shields made from steel 1.4571 allows for aggressive media measurement. Sensor is placed in additional shield and assembled with screw.

SPECIFICATION:
TypeExecution
ACT-21 Normal
ACT-21/EXI Spark safe
SENSOR TECHNICAL PARAMETERS
VersionCharacteristicMeasurement resistorMeasurement rangeAccuracy classMax measurement currentConnection type
normal
shockproof
according to PN-EN-60751 1xPt100, 2xPt100 from -50°C
up to +250°C
B 8 mA 2 cables
1xPt100 A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA

Shield
diameter
d[mm]

material according to
WNr/ DIN

material according to
ASTM /AISI

length
L[mm]

Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary

Additional shield
diameter
d[mm]

material according to
WNr/ DIN

material according to
ASTM /AISI

length
L[mm]

Stub pipe thread

Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary M20x1,5 G1/2” G3/4” G3/8”

Connection head
TypeMax operation temperatureMaterial
MA +100O AL<
