Gamintojas: OMERIN

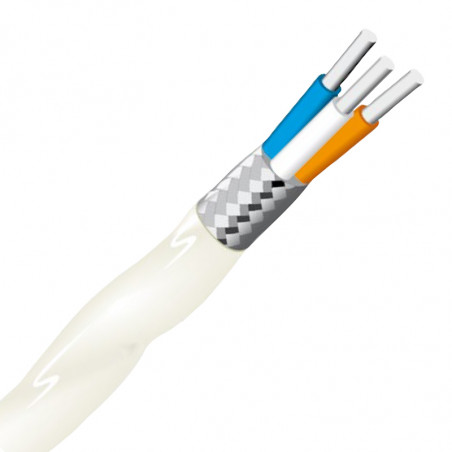

SILIFLON KU-03, KU-04, KU-05, KU-06 -55°C iki +150°C

Characteristics

  • Continuous operating temperatures: -55 °C to +150 °C
  • Excellent resistance to aggressive chemical environments.
  • Excellent resistance to humidity and UV
  • Excellent mechanical strength.
  • Rated voltage: 600V AC/850V DC,
  • Test voltage:

KU 03 i KU 04 – 3400V AC
KU 05 i Ku 06 – 1500V AC

Standard products

  • Standard conductor colours of the pair: white and blue.
  • Standard conductor colours of the triple: white, blue and orange.
  • Standard outer sheath colour: white.

Approvals - standards

  • NF approval as per standard NF C 93-523 – Approval certificate no. NF/96-026.

Applications

  • Wires used in aeronautical, electronic and all instrumentation applications requiring high resistance to high temperatures and to chemical influences.

Options

  • Other colours: contact us.
