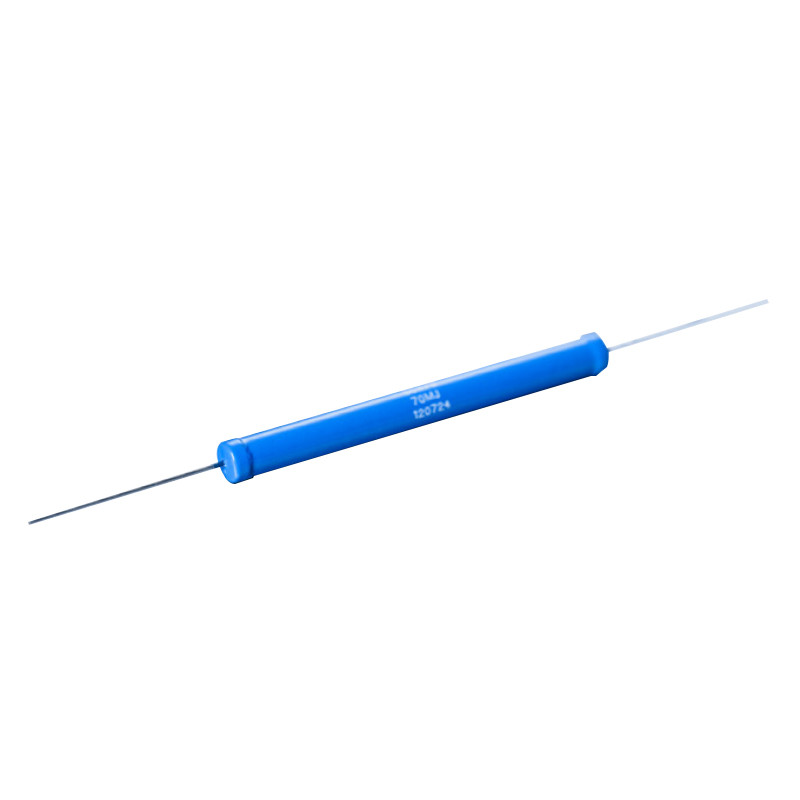

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: EBG

SSX/SOX serija – tikslieji aukštos įtampos galios rezistoriai, TC 100PPM/°C

Main parameters:
• Silicon coat for ambient temperature up to 225°C
• Epoxide coat providing excellent protection against humidity.
- available with  SOX marking
• Tolerance 0.1% - 10%
• Temperature coefficient 100ppm/°C do 250ppm/°C
•  Standard temperature coefficient 100ppm/°C
• Nominal power range up to  19.4W
• 16 types with nominal voltage 5kV - 60kV
• stability 0.5% na 1000h
• resistance range 300Ω -10GΩ


Technical data
Tolerance
1%, 2%, 5% or 10%
Temperature coefficient
Standard 100ppm/°C @ do 25°C, ∆R tested @ 0°C and 70°C,
Coat
Silicon or epoxide on the whole element

Scheme

Table. Technical data

TypeP
70°C
[W]
UN

[kV]
Us
„s”
[kV]
ResistanceDimensions
Rmin
[Ω]
Rmax
[Ω]
A±0,5
[mm]
B±0,5
[mm]
C±0,5
[mm]
SOX 20 1/6 5 6,2 300 10G 21,3 8,6 1
SOX 26 2,1 7,5 9,4 450 10G 27,5 8,6 1
SOX 39 3,2 11 13,8 500 10G 40,2 8,6 1
SOX 52 4,3 16 20 400 10G 52,5 8,6 1
SOX 78 6,5 24 30 600 10G 78,7 8,6 1
SOX 103 8,5 32 40 800 10G 104,1 8,6 1
