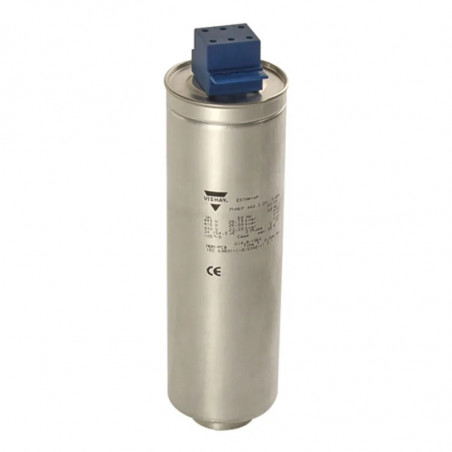

Stačiakampiai kondensatoriai
  • Stačiakampiai kondensatoriai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: Vishay

Stačiakampiai kondensatoriai

It is possible to purchase the whole battery with regulator. For details please contact DACPOL
Electrical data:
Voltage range:
 230V/50Hz - 910V/50Hz
Power:
2,3kVAr - 250 kVAr
Standards:
IEC 831-1+2/88, EN 60831-1+2/93, VDE 560-46+47 3/95
Over voltage
Ucn + 10% (up to 8 hours per day)

Ucn + 15% (up to 30 minutes per day)

Ucn + 20% (up to 5 minutes)

Ucn + 30% (up to 1 minute)
Over current
1,3 * In,

1,3 * with 10% over voltage,

with 15% over capacity and THD


capacity tolerance
-5/ + 10%
Voltage test
(terminal - terminal) 2,15 * Ucn, AC, 2 sec

(terminal - casing) 4800 VAC, 2 sec
Test current
200 *In
Losses
< 0,50 W/kVAr
Life time:
> 100 000 hours
IP
IP00, IP43, IP54
Operation temperature
-25 -. 55°C )
Casing temperature
60°C
Cooling: Natural air

Humidity
max. 95%
Maximum operation height:
2000 m above sea level
Assembly
vertical
Assembly
4 holes Ø 9mm on the bottom
Protection
Over pressure safety device, self regenerating
Casing:
steel, plate
Dielectric
