Varistoriai e 80 serija
  • Varistoriai e 80 serija

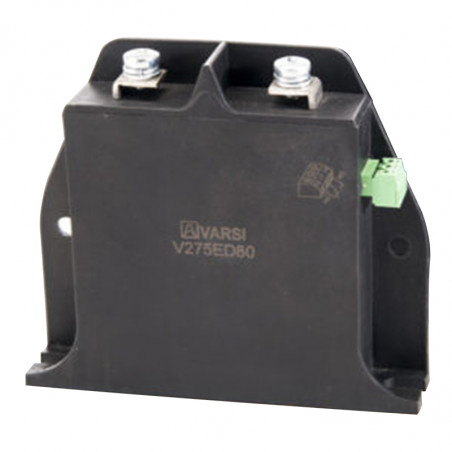

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: Varsi

Varistoriai e 80 serija

Operation temperature range
-40...+85C
Storage temperature
-40...+110C
Response time
poniżej 25ns

TypMaximum Ratings Ta=+85°C(+185°F)Characteristics Ta = +25°C (+77°F)
Max operation voltageDissipation power



Pmax
[W]
Current
(8/20 μs)

Imax [A]
Absorbed energy (2 ms)


W max
[J]
Varistor voltage (1 mA)

VN[V]
Varistor voltage tolerance VN
∆VN [+%]
Max single test current (8/20 μs)Capacity f=1kHz


C [pF]
RMS Voltage Vms
[V]
DC Voltage VDC
[V]
VC [V]I [A]
V130D80E 130 170 2.0 100000 660 205 10 340 800 28000
V140D80E 140 180 2.0 100000 710 220 10 360 800 26000
V150D80E 150 200 2.0 100000 800 240 10 395 800 23000
V175D80E 175 225 2.0 100000 890 270 10 455 800 20000
V230D80E 230 300 2.0 100000 1200 360 10 595 800 16000
V250D80E 250 320 2.0 100000 1300 390 10 650 800 14100
V275D80E 275 350 2.0 100000 1400 430 10 710 800 13000
V300D80E 300 385 2.0 100000 1500 470 10 755 800 12000
V320D80E 320 420 2.0 100000 1600 510 10 840 800 11000
V385D80E 385 505 2.0 100000 2000 620 10 1025 800 9000
V420D80E 420 560 2.0 100000 2200 680 10 1120 800 8600
V440D80E 440 585 2.0 100000 2350 715 10 1180 800 8200
V460D80E 460 615 2.0 100000 2500 750 10 1240 800 7800
V510D80E 510 670 2.0 100000 2600 820 10 1355 800 7000
V550D80E 550 745 2.0 100000 3100 910 10 1500 800
