VARPREN MAX -30°C iki + 125°C
  • VARPREN MAX -30°C iki + 125°C
  • VARPREN MAX -30°C iki + 125°C

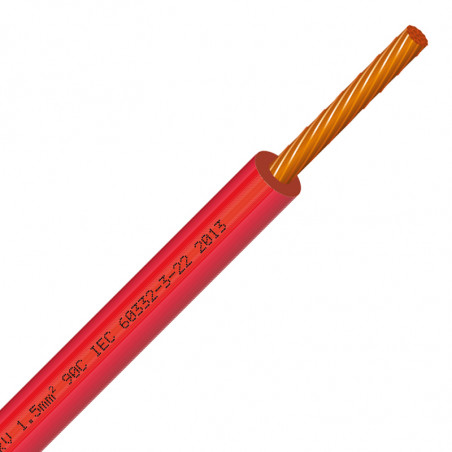

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: OMERIN

VARPREN MAX -30°C iki + 125°C

Characteristics

• Rated voltage: 600/1000 V.
• Test voltage: 3500 V.
• Continuous operating temperature: -30 °C to +125 °C.
• Maximum core temperature: +90 °C.
• Maximum core temperature in short-circuit: +250 °C.
• Minimum bending radius: 5 x D.

Standard products

• Separating tape according to cross-sections.

Approvals - standards

• Fire retardant (NBN EN 60332-3-22) as per IEC 60332-3-22.
• Flame retardant as per IEC 60332-1-2.
• Halogen free as per IEC 60754-1.
• No smoke corrosiveness as per IEC 60754-2.
• Low smoke opacity as per IEC 61034-2.
• Excellent tearing strength as per ISO 34-1
• ITC and INC complying with the requirements of the UITP document.
• Manufacture and test as per IEC 60092-350.
• DCN approval no. 620315/2003 ING CN.
• BVM certification.

Applications

• Fixed installation on board ships.

1 • Flexible bare copper core, class 5 as per IEC 60228.
2 • Varpren® insulation.



CORE

INSULATION

Nominal cross-section [mm2] Nominal stranding Max. linear resistance at 20 °C (Ω/km) Nominal thickness of insulation (mm Nominal outside diameter (mm) Approximate linear weight (kg/km)
0,5 16 x 0,20 39,0 0,7 2,4 11
0,75 24 x 0,20 26,0 0,7 2,6 14
1 32 x 0,20 19,5 0,7 2,8 19
1,5 30 x 0,25 13,3 0,7 3,1 25
2,5 50 x 0,25 7,98 0,7 3,6 35
4 56 x 0,30 4,95 0,7 4,1 45
6 84 x 0,30 3,30 0,7 4,8 58
10 80 x 0,40 1,91 0,7 6,0 130
16 126 x 0,40 1,21 0,7 7,2 220
25 196 x 0,40 0,780 0,9 9,0 330
35 276 x 0,40 0,554 0,9 10,2 370
50 396 x 0,40 0,386 1,0 11,8 500
70 360 x 0,50 0,272 1,1 14,4 730
95 485 x 0,50 0,206 1,1 16,5 970
120 608 x 0,50 0,161 1,2 18,4 1250
