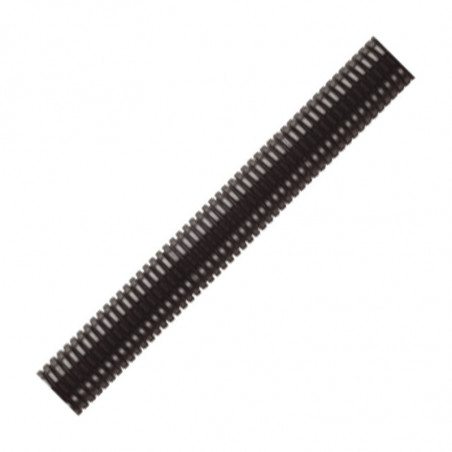

Corp FPI - corp flexibil standard din nylon ondulat (PA12)
  • Corp FPI - corp flexibil standard din nylon ondulat (PA12)

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: FLEXICON

Corp FPI - corp flexibil standard din nylon ondulat (PA12)

Corp FPI - corp flexibil standard din nylon ondulat (PA12)

Peszel FPI – standardowy elastyczny karbowany peszel z nylonu (PA12)

Caracteristici:
Material: PA12 nylon, rezistent la UV, ulei și solvent
Culoare: negru
Rezistență la foc:
Rezistent la flacără (raport EN50086 RAPRA nr. 39485), DIN5510 (Raport CSI nr. 15897), nu conține halogeni, sulf și fosfor
Interval de temperatură: -50OC +110OC
Grad de protectie IP:
IP66 cu accesorii FPA
IP66+67+68+69K cu accesorii FPAX
Rezistență la compresiune (dimensiune 21mm): 45kg/100mm
Rezistența la tracțiune (dimensiunea 21mm): 30kg cu accesorii FPA si FPAX
Rezistent la UV

Utilizare tipică
Peszel FPI – standardowy elastyczny karbowany peszel z nylonu (PA12) zastosowanie maszyny Mașini și OEM

Certificari:
Peszel FPI – standardowy elastyczny karbowany peszel z nylonu (PA12) certyfikat
EN 61386 Clasificare disponibilă la cerere

File No. E229161
demn de 1-085-A3

Certificatul metroului din Londra nr. 298


Desen

Profil

F=personalizat

C=gros

Tip Lungimea ruloului
[m]
Diam. ext.
OD
[mm]
Diam. int.
ID
[mm]
Raza de îndoire R
[mm]
Forța compresivă
[kg/100mm]
Greutate
[g/m]
13 F

FPI13B

50 13.0 9.8 25 50 26
16 F

FPI16B

50 15.8 11.8 30 45 35
21 F

FPI21B

50 21.2 16.7 35 45 55
28 C

FPI28B

50 28.5 21.7 45 70 92
34 C

FPI34B

25 34.5 28.1 55 70 120
42 C

FPI42B

25 42.5 35.5 60 70 160
54 C

FPI54B

25 54.5 47.2 70 50 220
67 C

FPI67B

10 67.2 56.3 120 50
