B-wit 100 - инжекционен трансформатор

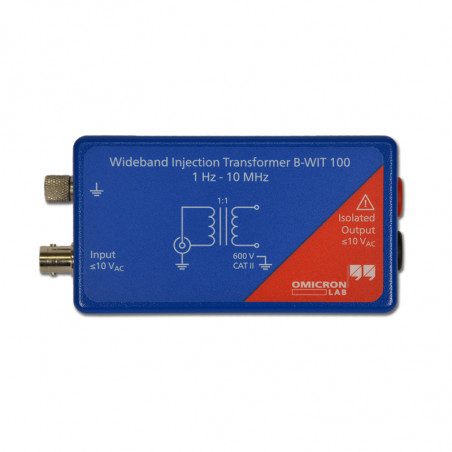

B-WIT 100 Injection Transformer

The B-WIT 100 combines a wide frequency range (1Hz - 10 MHz) with a 600V CAT II compliant output. The wide frequency range ensures that the B-WIT 100 can be used for the analysis of very slow control loops (low loop bandwidth) as well as very fast control loops (high loop bandwidth). The 600V CAT II compliant output ensures that DC/DC converters with an output voltage ranging from a few volts up to mains voltage can be analyzed.



Key features:

  • Optimized for signal insertion into control loops using low impedances
  • Extremely wide frequency range: 1 Hz – 10 MHz (useable frequency range)
  • Highest linearity
  • Low insertion loss
  • Fully 600V CAT II compliant output
  • CE compliant, RoHS compliant

Rated data:

Useable frequency range 1Hz…10MHz
3dB frequency range 7Hz…5MHz
Insertion loss <0.5dB
Ratio 01:01
Winding capacity 110pF
Max. input voltage 4VRMS
Input BNC
Output Banana jacks
Dimensions 114x63x30mm
Weight <0.25kg

Typical frequency response:

Amplitude

B-WIT 100 – Transformator wstrzykujący - charakerystyka amplitudowa

Phase

B-WIT 100 – Transformator wstrzykujący - charakerystyka fazowa
