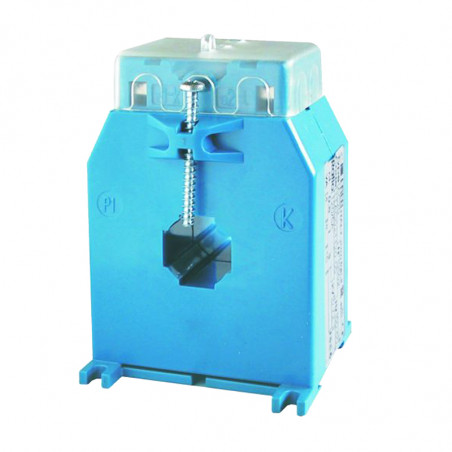

TAC021 токов трансформатор за Ø21 кабел / 20x10mm релса
  • TAC021 токов трансформатор за Ø21 кабел / 20x10mm релса

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FRER

TAC021 токов трансформатор за Ø21 кабел / 20x10mm релса

TECHNICAL DATA

Thermoplastic material
 UL94-V0
Operating frequency
 50-60Hz
Voltage
 0.72kV
Test voltage
 3kV * 1’50Hz
Insulation
 Klasa E
Protection degree
 IP 20
Continuous overcurrent
 1.2In
Rated short-time thermal current (I th)
 60 In
Rated dynamic current (I dyn)
 2.5 x I th
Safety factor
 N<5
max. power dissipation (max range value)
 <2,5W
Operating temperature
 -25 +50o C
Storage temperature
 -40 +80o C
Manufactured according to

IEC/EN 60044-1,
VDE, BS, UTE
Integrated secondary terminals
 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
30/5 A     1.5

TAC021030X05
40/5 A     3

TAC021040X05
50/5 A   2 5

TAC021050X05
60/5 A   3 6

TAC021060X05
80/5 A   4 8

TAC021080X05
100/5 A 3 6 12

TAC021100X05
120/5 A 4 8 15

TAC021120X05
150/5 A 6 12 20

TAC021150X05
200/5 A 10 15 25

TAC021200X05
250/5 A 15 25 30

TAC021250X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
30/1 A     1.5

TAC021030X01
40/1 A     3

TAC021040X01
50/1 A   2 5

TAC021050X01
60/1 A   3 6

TAC021060X01
80/1 A   4 8

TAC021080X01
100/1 A 3 6 12

TAC021100X01
120/1 A 4 8 15

TAC021120X01
150/1 A 6 12 20

TAC021150X01
200/1 A 10 15 25

TAC021200X01
250/1 A 15 25 30

TAC021250X01


Dimensions

Przekładnik prądowy TAC021 na kabel Ø21/ szynę 20x10mm wymiar
