Производител: WeSiTec eK

Symega-Vo заземяваща система

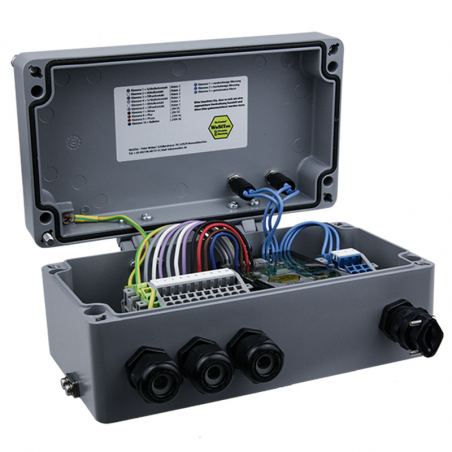

Ex - SYMEGA-VO grounding system

The grounding system Ex - SYMEGA-VO is intended to prevent electrostatic charges in potentially explosive areas and creates a secure connection between stationary and mobile, metallic or conductive and dissipative objects and a good earth.
The earthing system visualizes the presence of a good earth by means of a green LED and can enable or interrupt the subsequent process via potential-free changeover contacts.

The earthing system can be operated in two different variations.
Variation 1: Low-resistance measurement of the equipotential bonding from 0 ... 1 kOhm or 10 3 Ohm. (E.g. barrels, trucks)
Variation 2: High- resistance measurement of the potential equalization from 0 ... 3 MOhm or 3x10 6 Ohm ( e.g. big bags )

По-малко
Прочетете още

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас

ПОИСКАЙТЕ ПРОДУКТА close
Съобщението е изпратено успешно.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед

Добави към списъка с желания

Трябва да сте влезли

Ex - SYMEGA-VO grounding system

The grounding system Ex - SYMEGA-VO is intended to prevent electrostatic charges in potentially explosive areas and creates a secure connection between stationary and mobile, metallic or conductive and dissipative objects and a good earth.
The earthing system visualizes the presence of a good earth by means of a green LED and can enable or interrupt the subsequent process via potential-free changeover contacts.

The earthing system can be operated in two different variations.
Variation 1: Low-resistance measurement of the equipotential bonding from 0 ... 1 kOhm or 10 3 Ohm. (E.g. barrels, trucks)
Variation 2: High- resistance measurement of the potential equalization from 0 ... 3 MOhm or 3x10 6 Ohm ( e.g. big bags )
