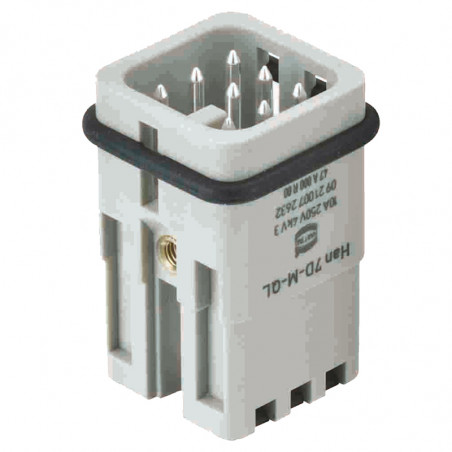

Производител: HARTING Technology Group

Хан д

Inserts Han D®

Number of contacts7 + 7 + 88
Power supply Crimp terminal Quick Lock Power supply Crimp terminal Quick Lock Power supply

Electrical data acc. to EN 61 984
UL/CSA		 10 A 250 V 4 kV 3
600 V		 10 A 250 V 4 kV 3 10 A 50 V 4 kV
3 50 V		 10 A 50 V 0,8 kV 3
Wire gauge 0,14 ... 2,5 mm2 0,25 ... 1,5 mm2 0,14 ... 2,5 mm2 0,25 ... 1,5 mm2
Identification of contacts 1-7 1-7 1-8 1-8
Male insert (M) 09 21 007 3031 09 21 007 2632 09 36 008 3001 09 36 008 2632
Female insert (F) 09 21 007 3131 09 21 007 2732 09 36 008 3101 09 36 008 2732

Number of contacts15 + 25 +40 +
Power supply Crimp terminal Crimp terminal Crimp terminal

Electrical data acc. to EN 61 984 UL/CSA 10 A 250 V 4 kV 3
600 V		 10 A 250 V 4 kV 3
600 V		 10 A 250 V 4 kV 3
600 V
Wire gauge 0,14 ... 2,5 mm2 0,14 ... 2,5 mm2 0,14 ... 2,5 mm2
Identification of contacts 1-15 1-25 1-40
Male insert (M) 09 21 015 3001 09 21 025 3001 09 21 040 3001
Female insert (F) 09 21 015 3101 09 21 025 3101 09 21 040 3101

Number of contacts50 + 64 +
Power supply Crimp terminal Crimp terminal


Electrical data acc. to EN 61 984
UL/CSA

 10 A 250 V 4 kV 3
600 V		 10 A 250 V 4 kV 3
600 V
Wire gauge 0,14 ... 2,5 mm2 0,14 ... 2,5 mm2
Identification of contacts 1-25 1-25 1-64
Male insert (M) 09 21 025 3001 09 21 025 3001 09 21 064 3001
Female insert (F) 09 21 025 3101 09 21 025 3101 09 21 064 3101

Number of contacts80 + 128 +
Power supply Crimp terminal Crimp terminal

Electrical data acc. to EN 61 984
UL/CSA		 10 A 250 V 4 kV 3
600 V		 10 A 250 V 4 kV 3
600 V
Wire gauge 0,14 ... 2,5 mm2 0,14 ... 2,5 mm2
Identification of contacts 1-40 1-40 1-64 1-64
Male insert (M) 09 21 040 3001 09 21 040 3001 09 21 064 3001 09 21 064 3001
Female insert (F) 09 21 040 3101 09 21 040 3101 09 21 064 3101 09 21 064 3101
