Литиево-йонни батерии. Нестандартни батерии. Система за управление на батерията (BMS)

Modular Li-ion battery Building Blocks, Custom batteries, BMS

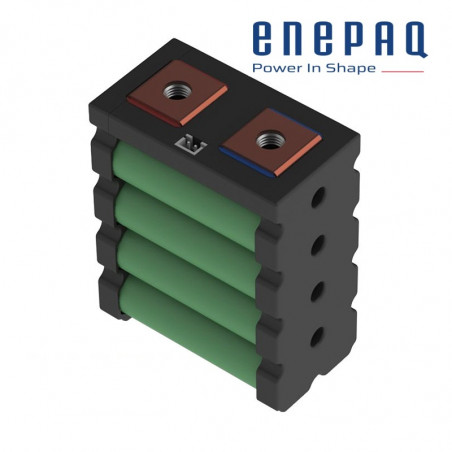

Modular Li-ion battery Building Blocks 18650

  • Small size: 307 Wh per liter
  • Low weight: 172 Wh per kg
  • Individually fuse-protected cells
  • Ultra low and equal self-discharge
  • Rapid prototyping of battery pack
  • Convenient thermal control
  • Built from Samsung INR18650-25R cells
  • Built-in 4-point temperature sensor
  • UL94-V0 rated, fire-retardant plastics

Cell type – SAMSUNG 18650 25R – power optimized

Configuration Lenght (A)
[mm]
Width
[mm]
Capacity
[Ah]
Resistance
[mΩ]
Constant current
[A]
Weight
[kg]
Gravimetric energy density
[Wh/kg]
Volumetric energy density
[Wh/l]
1x4p 86,4 20,3 10 4,8 80 0,22 166 295
1x5p 104,7 20,3 12,5 3,8 100 0,27 168 305
1x6p 123 20,3 15 3,2 120 0,32 169 311
1x7p 141,3 20,3 17,5 2,7 140 0,37 170 316
1x8p 159,6 20,3 20 2,4 160 0,42 171 320
1x9p 177,9 20,3 22,5 2,1 180 0,47 172 323
1x10p 196,2 20,3 25 1,9 200 0,52 172 325
2x4p 86,4 38,7 20 2,4 160 0,43 168 310
2x5p 104,7 38,7 25 1,9 200 0,53 171 320
2x6p 123 38,7 30 1,6 240 0,63 172 327
2x7p 141,3 38,7 35 1,4 280 0,73 173 332
2x8p 159,6 38,7 40 1,2 320 0,83 174 336
2x9p 177,9 38,7 45 1,1 360 0,93 174 339
2x10p 196,2 38,7 50 1,0 400 1,03 174 341


Cell type – SANYO NCR18650GA – energy optimized

Configuration Lenght (A)
[mm]
Width
[mm]
Capacity
[Ah]
Resistance
[mΩ]
Constant current
[A]
Weight
[kg]
Gravimetric energy density
[Wh/kg]
Volumetric energy density
[Wh/l]
1x4p 86,4 20,3 13,2 9,8 40 0,23 208 390
1x5p 104,7 20,3 16,5 7,8 50 0,28 210 402
1x6p 123 20,3 9,8 6,5 60 0,34 212 411
1x7p 141,3 20,3 23,1 5,6 70 0,39 213 417
1x8p 159,6 20,3 26,4 4,9 80 0,45 214 422
1x9p 177,9 20,3 29,7 4,3 90 0,50 214 426
1x10p 196,2 20,3 33 3,9 100 0,55 215 429
2x4p 86,4 38,7 26,4 4,9 80 0,45 210 409
2x5p 104,7 38,7 33 3,9 100 0,56 213 422
2x6p 123 38,7 39,6 3,3 120 0,66 215 431
2x7p 141,3 38,7 46,2 2,8 140 0,77 216 438
2x8p 159,6 38,7 52,8 2,4 160 0,88 217 443
2x9p 177,9 38,7 59,4 2,2 180 0,99 217 447
2x10p 196,2 38,7 66 2,0 200 1,09 218 450


BMS


  • Integrated 150A power switch
  • Supports 12V to 60V systems, all lithium chemistries
  • All parameters are adjustable: voltage, current, temperature
  • Up to two external temperature sensors and one dual-range current sensor
  • Dissipative balancing up to 150mA
  • Connectivity: UART, MODBUS, CAN, USB, and Bluetooth
  • Event Log, Usage Statistics
  • Free firmware upgrades
  • Programmable Inputs [&] Outputs
  • Ultra-compact design: 95x65x9 m


Custom batteries


  • Industry-highest energy density, lowest weight
  • Made from genuine cells, both power and energy-optimized models available
  • Optional integrated BMS
  • No initial balancing required
  • Very low self-discharge and disbalance
  • Peak discharge/regen up to 18C
  • Configurations from 1s1p to 24s100p and above
  • Samsung, Sony, Sanyo or other Cells under request
    • Weight examples
    • 6s 9Ah 60A - 0,900 kg (LG HG2)
    • 12s 9Ah 60A - 1.800 kg (LG HG2)
    • 12s 7.5Ah 100A - 1.800 kg (Samsung 25R)
