Siretherm 30x индукционен нагревател
  • Siretherm 30x индукционен нагревател

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: TM Induction Heating

Siretherm 30x индукционен нагревател

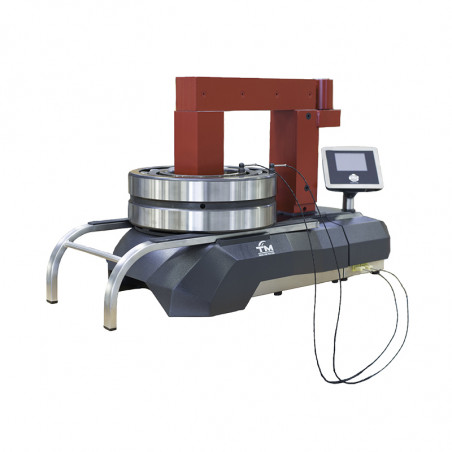

Induction heater SURETHERM 30X

Equipped with our intuitive touchscreen interface, ergonomic pivoting yokes, and two sensor heating, the SURETHERM 30X is the most complete induction heater we’ve ever built.

Designed for use in maintenance shops and production areas, this heating tool can heat parts with a maximum weight of 200 kg, and a diameter of up to 600 mm.



Specifications


Power Rating 8 kVA
Facility Power 400 - 575 V / 20 A / 50/60 Hz
Temperature Control Single / Dual
Weight 85 kg
Operating Area (WxH) 210 x 220 mm
Dimensions (LxBxH) 695 x 330 x 160 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 600 mm
Max. weight (workpiece) 200 Kg
