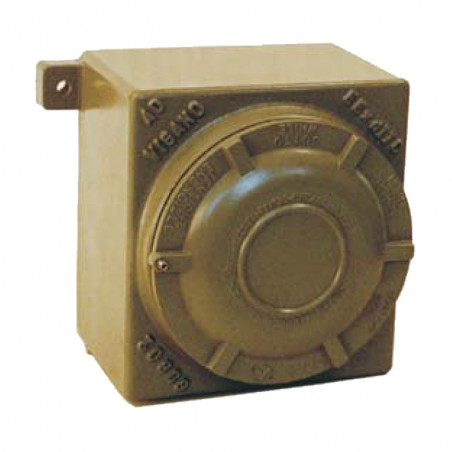

Жилище с поредица от "ГУБ"
  • Жилище с поредица от "ГУБ"
  • Жилище с поредица от "Гъб"
  • Жилище с поредица от "Гъб"
  • Жилище с поредица от "Гъб"

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: A.D. VIGANÒ

Жилище с поредица от "Гъб"

Protection mode:
II 2GD Ex d IIC T6/T5, Ex tD A21 IP66 T85°C/100°C (Amb.temperature -40°/-60°C to +55°C;
only GUB06-07 -40°C +40°C)
II 2(1)GD Ex d[ia] IIC T6, Ex tD[iaD] A21 IP66 T85°C (Ambient Temperature -20°C to +40°C)

Certificate: ATEX, IECEx, GHOST-R.


This series are used for electrical equipments for command, connection of electric conductors, swtich, .....
Materials:Body and cover in light alloy casting, cast iron on request. External bolt and screws 18/8 stainless steel
Painting: Standard grey epoxy RAL7037, Internal orange anticondensationRAL2004 ther colours specify RAL.
Features:All boxes complete with internal supporting plate and lugs for wall mounting. The serieHare provided with inspection window.



Enclosures series GUB

Enclosures

 External dimension Internal dimension Fixing dimension Weight
A B C D a b c ød H I1 I2 kg

GUB

 133 133 117 169 103 103 60 97 7 152 99 2.5

GUB0

 160 160 129 206 132 132 70 126 9 180 122 3.6

GUB01

 179 179 108 225 148 148 50 145 9 202 149 3.0

GUB02

 179 193 142 233 148 162 85 145 9 207 150 4.8

GUB03

 203 203 147 248 172 172 90 166 9 230 168 5.0

GUB04

 257 298 166 300 223 264 90 220 9 276 246 13.0

GUB04A

 257 298 208 300 223 264 135 220 9 276 246 13.5

GUB05

 293 325 220 349 262 294 150 244 13 330 285 15.0

GUB06

 460 460 285 546 420 420 170 395 14 510 420 53.5

GUB07

 650 650 320 740 610 610 187 586 14 700 610 101.5

Example of application

Obudowa z wziernikiem serii GUB aplikacja
