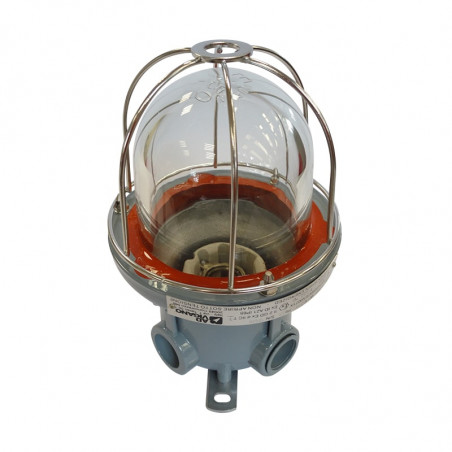

Осветител за осветление на серията EV
  • Осветител за осветление на серията EV
  • Осветител за осветление на серията EV

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: A.D. VIGANÒ

Осветител за осветление на серията EV

For:
- incandescent,
- halogen,
- led,
- energy saving,
- mixed lamps

Protection mode
II 2GD Ex d IIC T3/T6 Ex tD A21 IP65 T200oC/85oC (Temperatura otoczenia: -20oC do +40oC)

Certificate: ATEX

Materials: Body in alluminium. Globe in high resistant glass. Bolts and screws: in stainless steel.

Threads:: GAS UNI 6125. Other on request

Standard painting: Grey epoxy RAL 7037
Lighting fixture equipped with a protection guard in stainless steel. The reflector are supplied on request and not assembled on the fixture. Reflector in alluminium.


Standard powers:

Type Lamp Porcelain
Lamp holder		 Reflector
Incandescent Halogeni Fluor.energy saving LED Mixed lamps
EV..50 100 W 100 W 15 W 9 W   E27 REV50
EV..100 150 W 150 W 25 W     E27 REV100
EV..200 200 W 200 W 35 W   160 W E27 REV200
EV..300 500 W   85 W   250 W E40 REV300
Lamps not supplied



For:
- incandescent,
- halogen,
- led,
- energy saving,
- mixed lamps

Applications:
EVA… - Pole or tige suspension mounting. N° 1 hole ø 3/4"
EVC… - Ceiling mounting. Box with 2/4 holes ø 3/4" and lugs for fixing.
EVD… - Ring suspension mounting. Box with 2 hole ø 3/4".
EVJ… - Wall mounting. Bracket at 45° complete of box with 2 holes ø 3/4" and lugs for fixing.


EVA EVC
Type Dimensions

EV..50

 A = 134 mm EVJ
H = 194 mm

EV..100

 A = 152 mm
H= 240 mm

EV..200

 A = 178 mm
H = 275 mm

EV..300

 A = 197 mm
H = 358 mm
