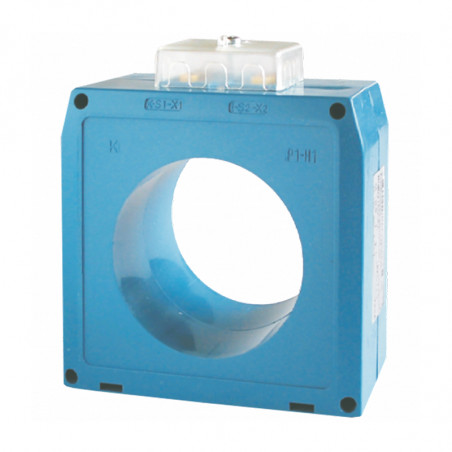

TAT080 ток трансформатор за Ø80 кабел
  • TAT080 ток трансформатор за Ø80 кабел

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FRER

TAT080 ток трансформатор за Ø80 кабел

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <16W
Operating temperature -25 +50o C
Storage temperature -40+80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/5 A 4 8

TAT080400X05
500/5 A 6 12

TAT080500X05
600/5 A 10 20

TAT080600X05
800/5 A 15 30

TAT080800X05
1000/5 A 20 40

TAT0801K0X05
1200/5 A 30 60

TAT0801K2X05
1500/5 A 40 80

TAT0801K5X05
2000/5 A 50 100

TAT0802K0X05
2500/5 A 60 120

TAT0802K5X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/1 A 4 8

TAT080400X01
500/1 A 6 12

TAT080500X01
600/1 A 10 20

TAT080600X01
800/1 A 15 30

TAT080800X01
1000/1 A 20 40

TAT0801K0X01
1200/1 A 30 60

TAT0801K2X01
1500/1 A 40 80

TAT0801K5X01
2000/1 A 50 100

TAT0802K0X01
2500/1 A 60 120

TAT0802K5X01


Dimensions

Przekładnik prądowy TAT080 na kabel Ø80 wymiary
