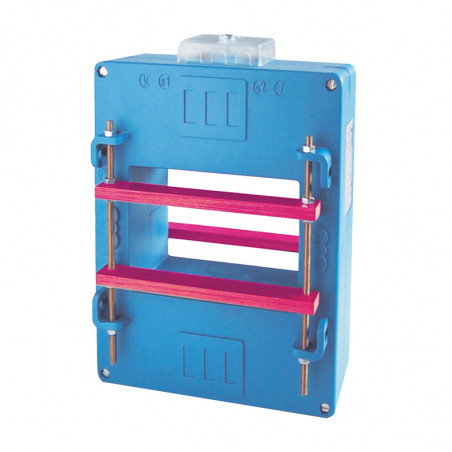

TAT128 ток трансформатор за релса от 127x85mm
  • TAT128 ток трансформатор за релса от 127x85mm

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FRER

TAT128 ток трансформатор за релса от 127x85mm

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <40W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/5 A 25 50

TAT1281K0X05
1200/5 A 30 60

TAT1281K2X05
1500/5 A 35 70

TAT1281K5X05
2000/5 A 40 80

TAT1282K0X05
2500/5 A 50 100

TAT1282K5X05
3000/5 A 70 120

TAT1283K0X05
4000/5 A 80 150

TAT1284K0X05
5000/5 A 100 180

TAT1285K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/1 A 25 50

TAT1281K0X01
1200/1 A 30 60

TAT1281K2X01
1500/1 A 35 70

TAT1281K5X01
2000/1 A 40 80

TAT1282K0X01
2500/1 A 50 100

TAT1282K5X01
3000/1 A 70 120

TAT1283K0X01
4000/1 A 80 150

TAT1284K0X01
5000/1 A 100 180

TAT1285K0X01


Dimensions

Przekładnik prądowy TAT128 na szynę 127x85mm
