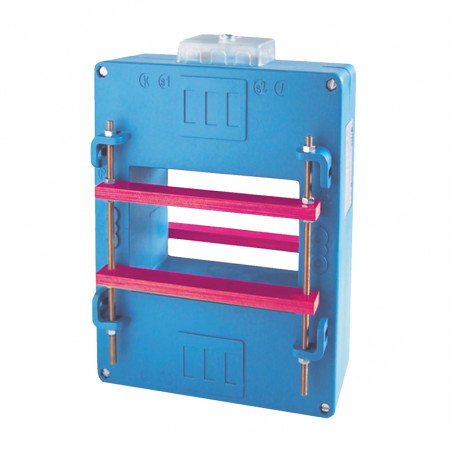

TAT128 Transformador de corriente para un riel de 127x85 mm
TAT128 Transformador de corriente para un riel de 127x85 mm

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: FRER

TAT128 Transformador de corriente para un riel de 127x85 mm

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <40W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/5 A 25 50

TAT1281K0X05
1200/5 A 30 60

TAT1281K2X05
1500/5 A 35 70

TAT1281K5X05
2000/5 A 40 80

TAT1282K0X05
2500/5 A 50 100

TAT1282K5X05
3000/5 A 70 120

TAT1283K0X05
4000/5 A 80 150

TAT1284K0X05
5000/5 A 100 180

TAT1285K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/1 A 25 50

TAT1281K0X01
1200/1 A 30 60

TAT1281K2X01
1500/1 A 35 70

TAT1281K5X01
2000/1 A 40 80

TAT1282K0X01
2500/1 A 50 100

TAT1282K5X01
3000/1 A 70 120

TAT1283K0X01
4000/1 A 80 150

TAT1284K0X01
5000/1 A 100 180

TAT1285K0X01



SECONDARY 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/5A 5 TAT1281K0J05 5 TAT1281K0Y05 1 TAT1281K0S05
1500/5A 7.5 TAT1281K5J05 7.5 TAT1281K5Y05 5 TAT1281K5S05
2000/5A 10 TAT1282K0J05 10 TAT1282K0Y05 5 TAT1282K0S05
3000/5A 20 TAT1283K0J05 20 TAT1283K0Y05 10 TAT1283K0S05
4000/5A 30 TAT1284K0J05 30 TAT1284K0Y05 20 TAT1284K0S05
5000/5A 30 TAT1285K0J05 30 TAT1285K0Y05 20 TAT1285K0S05



SECONDARY 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/1A 5 TAT1281K0J01 5 TAT1281K0Y01 1 TAT1281K0S01
1500/1A 7.5 TAT1281K5J01 7.5 TAT1281K5Y01 5 TAT1281K5S01
2000/1A 10 TAT1282K0J01 10 TAT1282K0Y01 5 TAT1282K0S01
3000/1A 20 TAT1283K0J01 20 TAT1283K0Y01 10 TAT1283K0S01
4000/1A 30 TAT1284K0J01 30 TAT1284K0Y01 20 TAT1284K0S01
5000/1A 30 TAT1285K0J01 30 TAT1285K0Y01 20 TAT1285K0S01



SECONDARY 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/5A 30 TAT1281K0K05 10 TAT1281K0L05 5 TAT1281K0M05
1200/5A 35 TAT1281K2K05 12 TAT1281K2L05 6 TAT1281K2M05
1500/5A 40 TAT1281K5K05 15 TAT1281K5L05 8 TAT1281K5M05
2000/5A 60 TAT1282K0K05 20 TAT1282K0L05 10 TAT1282K0M05
2500/5A 70 TAT1282K5K05 20 TAT1282K5L05 10 TAT1282K5M05
3000/5A 80 TAT1283K0K05 25 TAT1283K0L05 12 TAT1283K0M05
4000/5A 100 TAT1284K0K05 30 TAT1284K0L05 15 TAT1284K0M05
5000/5A 40 TAT1285K0K05 15 TAT1285K0L05 5 TAT1285K0M05



SECONDARY 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/1A 30 TAT1281K0K01 10 TAT1281K0L01 5 TAT1281K0M01
1200/1A 35 TAT1281K2K01 12 TAT1281K2L01 6 TAT1281K2M01
1500/1A 40 TAT1281K5K01 15 TAT1281K5L01 8 TAT1281K5M01
2000/1A 60 TAT1282K0K01 20 TAT1282K0L01 10 TAT1282K0M01
2500/1A 70 TAT1282K5K01 20 TAT1282K5L01 10 TAT1282K5M01
3000/1A 80 TAT1283K0K01 25 TAT1283K0L01 12 TAT1283K0M01
4000/1A 100 TAT1284K0K01 30 TAT1284K0L01 15 TAT1284K0M01
5000/1A 40 TAT1285K0K01 15 TAT1285K0L01 5 TAT1285K0M01


Dimensions

Przekładnik prądowy TAT128 na szynę 127x85mm
