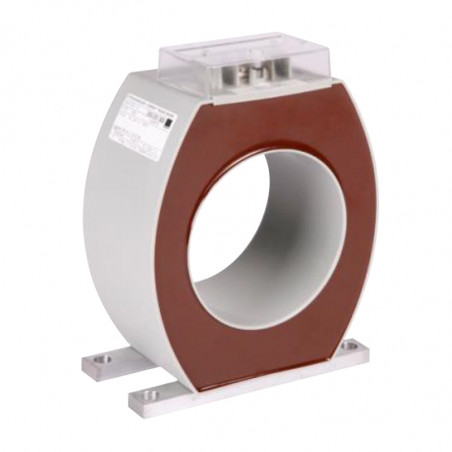

Текущи трансформатори за разпределителни устройства - SVA170

The SVA170 is specially designed for application in medium voltage installations as Ring Main Units. This cast measuring transformer is cost effective and very reliable. Multi-core and multi ratio types are available in measuring and protection classes.


Environmental conditionss
This product is designed to be safe under the following conditions:
Location: Indeoor use
Ambient temperature: -5°C .. +40°C
Relative humidity: 5% .. 85%, non condensing
Protection drgree IP20
Suitable for: Cables, bus-bar
Application conditions
Standard: IEC 60044-1
Rated short-time thermal current(lth) 60 x In/1s
Continuous thermal current (lth) 100%
Rated insulation level: 0,72/3/-kv
Rated frequency: 50/60Hz
Class of insulation: E
Primary current 30-1000A
Primaty windows dimensions: Ø 110mm
Secondary terminal Screw terminals (max. 2Nm)
Wire diameter max. 6mm² solid max 4mm² stranded




Ratio Class Burden Articele number
100/1A 10P10 2VA 106532

Wiring diagram
