Производител: DetasUltra

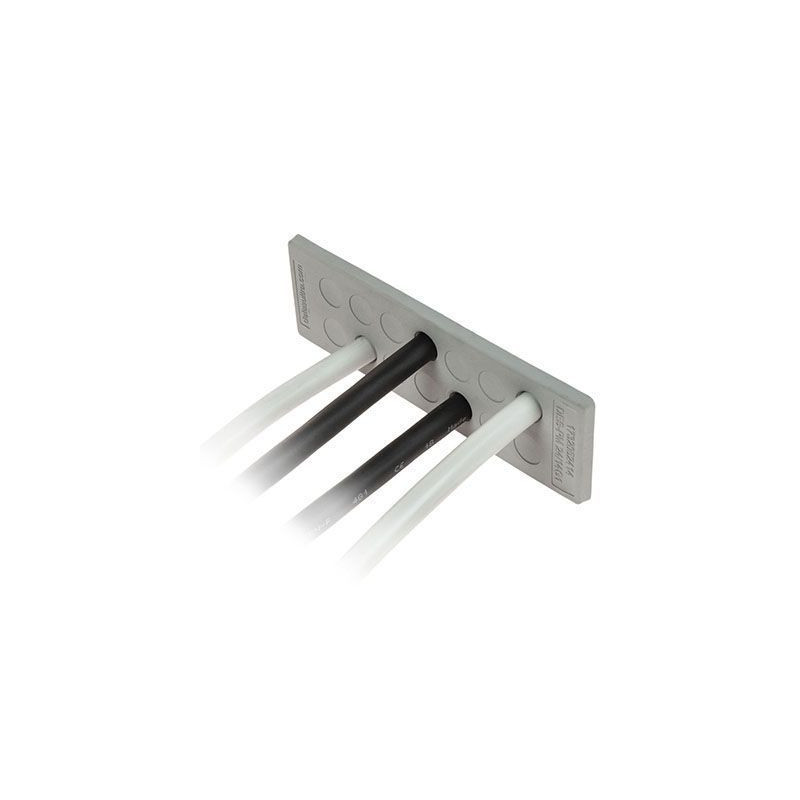

DES PM 24/20B - Плочи за въвеждане на кабели

  • 1732053421
  • Размери 144 X 46
  • Вид продукт Przepusty kablowe

DES PM 24 cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • High protection against water (IP65)
  • Material: TPE
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
  • Properties:halogen-free, silicone-free
  • Wall thickness: 1.5 to 2.5 mm
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PM 24/12G 1732052412 112 X 36 max. +0,5 144 X 46 12 - max. 15
DES PM 24/14G 1732052414 112 X 36 max. +0,5 144 X 46 14 - max. 12,1
DES PM 24/17G 1732052417 112 X 36 max. +0,5 144 X 46 5 - max. 10,5
12 - max. 12,6
DES PM 24/18G 1732052418 112 X 36 max. +0,5 144 X 46 4 - max. 6,5
5 - max. 10,5
5 - max. 12,6
4 - max. 16,1
DES PM 24/20G 1732052420 112 X 36 max. +0,5 144 X 46 13 - max. 6,5
7 - max. 12,1
DES PM 24/26G 1732052426 112 X 36 max. +0,5 144 X 46 16 - max. 6,5
4 - max. 12,1
4 - max. 16,1
2 - ASI
DES PM 24/42G 1732052442 112 X 36 max. +0,5 144 X 46 1 - max. 4,7
12 - max. 5
17 - max. 6,4
12 - max. 7,2
DES PM 24/48G 1732052448 112 X 36 max. +0,5 144 X 46 48 - max. 6,5
DES PM 24/50G 1732052450 112 X 36 max. +0,5 144 X 46 33 - max. 5,
9 - max. 6,4
8 - max. 8,3
DES PM 24/12B 1732053413 112 x 36 max. +0,5 144 x 46 12 - max. 15
DES PM 24/14B 1732053415 112 x 36 max. +0,5 144 x 46 14 - max. 12,1
DES PM 24/17B 1732053418 112 x 36 max. +0,5 144 x 46 5 - max. 10,5
12 - max. 12,6
DES PM 24/18B 1732053419 112 x 36 max. +0,5 144 x 46 4 - max. 6,5
5 - max. 10,5
5 - max. 12,6
4 - max. 16,1
DES PM 24/20B 1732053421 112 x 36 max. +0,5 144 x 46 13 - max. 6,5
7 - max. 12,1
DES PM 24/26B 1732053427 112 x 36 max. +0,5 144 x 46 16 - max. 6,5
4 - max. 12,1
4 - max. 16,1
2 - ASI
DES PM 24/42B 1732053443 112 x 36 max. +0,5 144 x 46 1 - max. 4,7
12 - max. 5
17 - max. 6,4
12 - max. 7,2
DES PM 24/48B 1732053449 112 x 36 max. +0,5 144 x 46 48 - max. 6,5
DES PM 24/50B 1732053451 112 x 36 max. +0,5 144 x 46 33 - max. 5,3
9 - max. 6,4
8 - max. 8,3
