Производител: DetasUltra

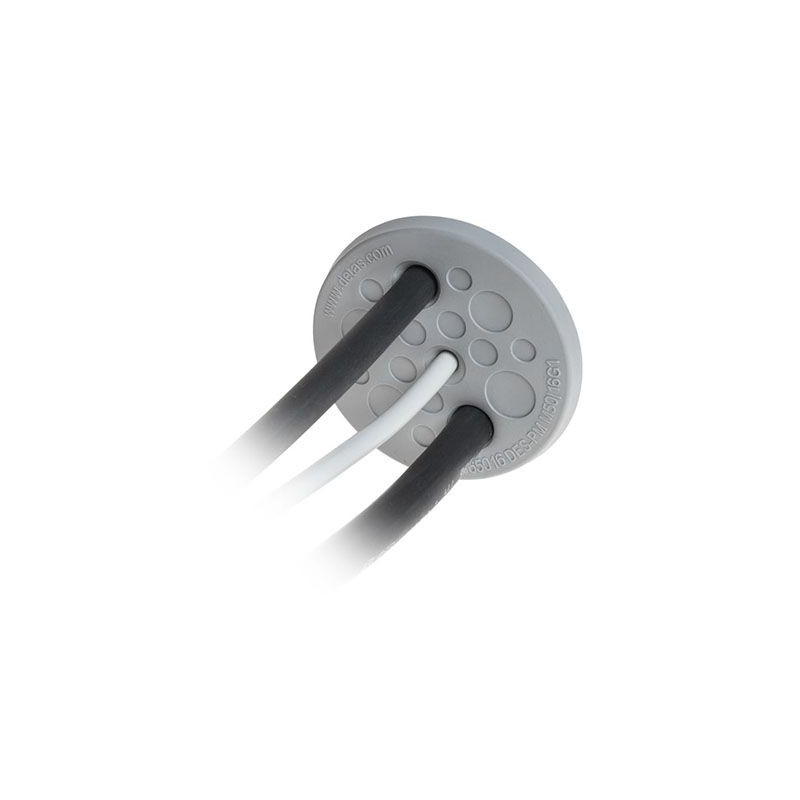

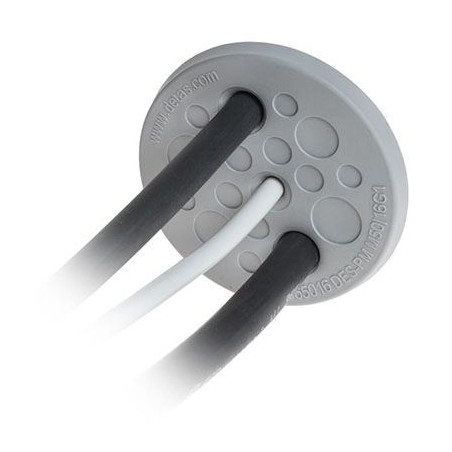

DES PM M50/11B - Плочи за въвеждане на кабели

  • 1732066012
  • Размери 62
  • Вид продукт Przepusty kablowe

DES PM M cable entry plates use metric hole openings and are an economical and reliable alternative to standard industrial cable glands.

  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • High protection against water (IP65)
  • Material: TPE
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
  • Type 1:for wall thicknesses from 1.5 to 2.5 mm
  • Type 2:for wall thicknesses from 2.8 to 4 mm
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PM M25/4G 1732062504 min: 25 max: 26 recommended: 25,5 34 4 - max. 8
DES PM M25/6G 1732062506 min: 25 max: 26 recommended: 25,5 34 4 - max. 5,2
2 - max. 9,4
DES PM M32/10G 1732063210 min: 32 max: 33 recommended: 32,5 40 6 - max. 5,2
2 - max. 6,4
2 - max. 9,4
DES PM M25/4B 1732063505 min: 25 max: 26 recommended: 25,5 34 4 - max. 8
DES PM M25/6B 1732063507 min: 25 max: 26 recommended: 25,5 34 4 - max. 5,2
2 - max. 9,4
DES PM M40/16G1 1732064016 min: 40 max: 41 recommended: 40,5 52 2 - max. 3,8
10 - max. 5,3
2 - max. 8,3
2 - max. 10,3
DES PM M40/16B2 1732064017 min: 40 max: 41 recommended: 40,5 52 2 - max. 3,8
10 - max. 5,3
2 - max. 8,3
2 - max. 10,3
DES PM M32/10B 1732064211 min: 32 max: 33 recommended: 32,5 40 6 - max. 5,2
2 - max. 6,4
2 - max. 9,4
DES PM M50/9G 1732065009 min: 50 max: 51 recommended: 50,5 62 5 - max. 7
4 - max. 18,3
DES PM M50/11G 1732065011 min: 50 max: 51 recommended: 50,5 62 7 - max. 7
3 - max. 11,4
1 -max. 22
DES PM M50/12G 1732065012 min: 50 max: 51 recommended: 50,5 62 10 - max. 9
2 - max. 11,4
DES PM M50/15G 1732065015 min: 50 max: 51 recommended: 50,5 62 2 - max. 6
4 - max. 7,2
4 - max. 9,7
5 - max. 12
DES PM M50/17G 1732065017 min: 50 max: 51 recommended: 50,5 62 5 - max. 5,5
5 - max. 6,5
3 - max. 9,7
4 - max. 11,4
DES PM M50/20G 1732065020 min: 50 max: 51 recommended: 50,5 62 16 - max. 6,5
4 - max. 9,7
DES PM M50/9B 1732066010 min: 50 max: 51 recommended: 50,5 62 5 - max. 7
4 - max. 18,3
DES PM M50/11B 1732066012 min: 50 max: 51 recommended: 50,5 62 7 - max. 7
3 - max. 11,4
1 - max. 22
DES PM M50/12B 1732066013 min: 50 max: 51 recommended: 50,5 62 10 - max. 9
2 - max. 11,4
DES PM M50/15B 1732066016 min: 50 max: 51 recommended: 50,5 62 2 - max. 6
4 - max. 7,2
4 - max. 9,7
5 - max. 12
DES PM M50/17B 1732066018 min: 50 max: 51 recommended: 50,5 62 5 - max. 5,5
5 - max. 6,5
3 - max. 9,7
4 - max. 11,4
DES PM M50/20B 1732066021 min: 50 max: 51 recommended: 50,5 62 16 - max. 6,5
4 - max. 9,7
DES PM M32/10G2 1732263210 min: 32 max: 33 recommended: 32,5 40 6 - max. 5,2
2 - max 6,4
2 - max. 9,4
DES PM M32/10B2 1732264211 min: 32 max: 33 recommended: 32,5 40 6 - max. 5,2
2 - max. 6,4
2 - max. 9,4
DES PM M50/12G2 1732265012 min: 50 max: 51 recommended: 50,5 62 10 - max. 9
2 - max. 11,4
DES PM M50/12B2 1732266013 min: 50 max: 51 recommended: 50,5 62 10 - max. 9
2 - max. 11,4
