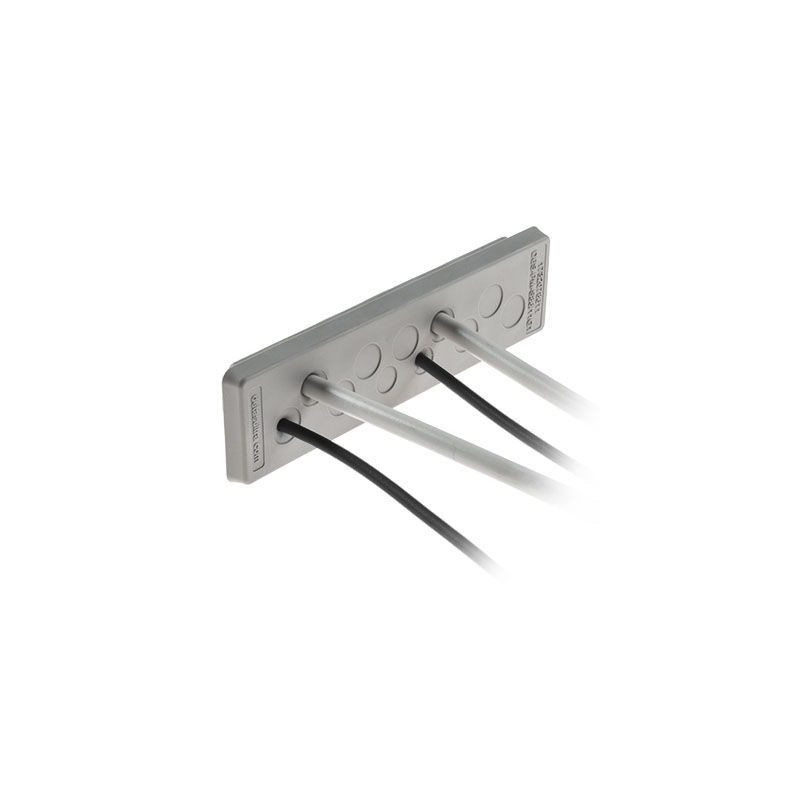

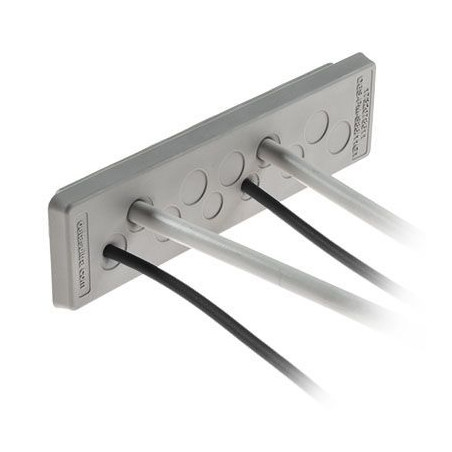

DES PM S cable entry plates are an economical and reliable alternative to standard industrial cable glands.
*4X for indoor use only
Model | Code | Dimensions [mm] Cut-out A1xA2 | Dimensions [mm] L1xL2 | No. cables - Ø cables [mm] |
---|---|---|---|---|
DES PM S112/21G | 1732071221 | 112 x 18 max. +0,5 | 130 x 28 | 16 - max. 6,5 4 - max. 8,3 1 - max. 12,1 |
DES PM S112/21B | 1732071222 | 112 x 18 max. +0,5 | 130 x 28 | 16 - max. 6,5 4 - max. 8,3 1 - max. 12,1 |
DES PM S46/7G | 1732074607 | 46 x 18 max. +0,5 | 64 x 28 | 2 - max. 6,5 5 - max. 8,3 |
DES PM S46/7B | 1732074608 | 46 x 18 max. +0,5 | 64 x 28 | 2 - max. 6,5 5 - max. 8,3 |
DES PM S46/9G | 1732074609 | 46 x 18 max. +0,5 | 64 x 28 | 8 - max. 6,5 1 - max. 12,1 |
DES PM S46/9B | 1732074610 | 46 x 18 max. +0,5 | 64 x 28 | 8 - max. 6,5 1 - max. 12,1 |
DES PM S69/8G | 1732076908 | 69 x 10 max. +0,5 | 86 x 20 | 8 - max. 7,5 |
DES PM S69/8B | 1732076909 | 69 x 10 max. +0,5 | 86 x 20 | 8 - max. 7,5 |
DES PM S86/11G | 1732078611 | 85 x 18 max. +0,5 | 103 x 28 | 2 - max. 6,5 9 - max. 8,35 |
DES PM S86/11B | 1732078612 | 85 x 18 max. +0,5 | 103 x 28 | 2 - max. 6,5 9 - max. 8,35 |
DES PM S86/17G | 1732078617 | 85 x 18 max. +0,5 | 103 x 28 | 16 - max. 6,5 1 - max. 12,1 |
DES PM S86/17B | 1732078618 | 85 x 18 max. +0,5 | 103 x 28 | 16 - max. 6,5 1 - max. 12,1 |
DES PM S46/7B V2 | 1739080010 | |||
DES PM S69/8B V2 | 1739080020 |
