Производител: DetasUltra

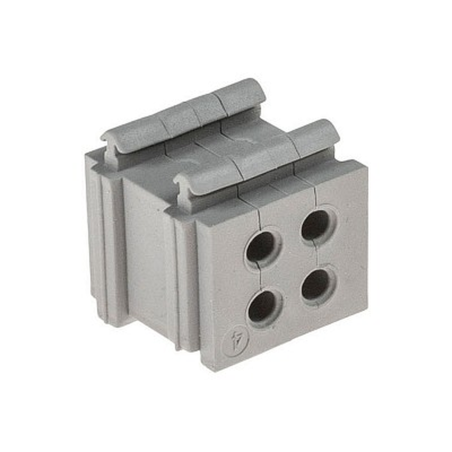

SPP 2X3 + 2X4,5G - Втулки

  • 1731020330
  • Вид продукт Уплътнителни модули
  • 2 - 3 2 - 4,5 ∅

The SPP 4X series cable grommets allow four cables with diameter from 2 to 6 mm to be routed through the DES splittable frames series .

  • Cable grommets for cable diameter from 2 to 6 mm
  • Long lasting product and high resistance to industrial oils.
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code No. cables - Ø cables [mm]
SPP 4X2G 1731020318 4 - 2
SPP 4X3G 1731020320 4 - 3
SPP 4X4G 1731020322 4 - 4
SPP 4X5G 1731020324 4 - 5
SPP 4X6G 1731020326 4 - 6
SPP 2X3 + 2X4,5G 1731020330 2 - 3
2 - 4,5
SPP 2X3 + 2X4,5B 1731020332 2 - 3
2 - 4,5
SPP 4X2B 1731020418 4 - 2
SPP 4X3B 1731020420 4 - 3
SPP 4X4B 1731020422 4 - 4
SPP 4X5B 1731020424 4 - 5
SPP 4X6B 1731020426 4 - 6
SPP 4X2GA 1731320318 4 - 2
SPP 4X3GA 1731320320 4 - 3
SPP 4X4GA 1731320322 4 - 4
SPP 4X5GA 1731320324 4 - 5
SPP 4X6GA 1731320326 4 - 6
SPP 4X2BA 1731320418 4 - 2
SPP 4X3BA 1731320420 4 - 3
SPP 4X4BA 1731320422 4 - 4
SPP 4X5BA 1731320424 4 - 5
SPP 4X6BA 1731320426 4 - 6
