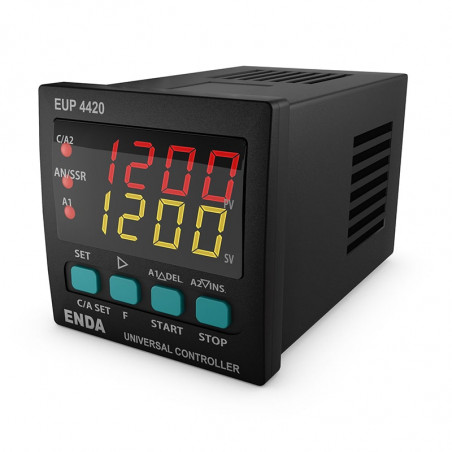

Универсални регулатори на серията EUP

• Selectable double set point
• Selectable sensor type
• Selectable 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV and 0-50mV input
• Profile control up to 8 steps
• Programmable AL1 and AL2 outputs for each step
• Resume operation after power interruption
• PID control function with accurate self-tuning
• Digital inputs can be assigned to 3 different feature
• Function key can be assigned to 3 different feature
• Soft-Start function
• Selectable analog, SSR or relay control output
• Selectable 0-20mA and 4-20mA analog control output
• C/A2 relay output can be programmable as second alarm or control output
• A1 relay output can be programmable as PID cooling control or first alarm
• Selectable heating and cooling control
• Input offset feature
• In the case of probe failure periodical running or relay state can be selected
• Communication via RS-485 ModBus protocol
• CE marked according to European Norms
