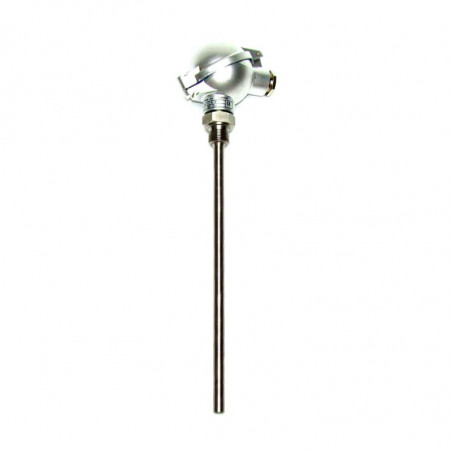

![Съпротивителен сензор с главичка ACT-04 Съпротивителен сензор с главичка ACT-04](https://www.dacpol.eu/27157-large_default/sprotivitelen-senzor-s-glavichka-act-04.jpg)
![Съпротивителен сензор с главичка ACT-04 Съпротивителен сензор с главичка ACT-04](https://www.dacpol.eu/27157-large_default/sprotivitelen-senzor-s-glavichka-act-04.jpg)
Трябва да сте влезли в
Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Model | Execution | Insert type | Length L |
---|---|---|---|
U | With not changeable insert | not changeable | arbitrary |
PS | With changeable insert | WP-OP-01/PS | |
PS/Exi | Spark safe with changeable insert | ||
PS/Exe | Strengthen casing with changeable insert |
Measurement resistor | Version | Characteristic | Measurement range | Accuracy class | Max measurement current | Connection type |
---|---|---|---|---|---|---|
1xPt100 2xPt100 |
normal shockproof |
wg PN-EN-60751 | from -200°C up to +600°C |
B | 8 mA | 2 cables |
A | 5 mA | 3, 4 cables |
||||
-50°C+150°C | 1/3 B DIN | 2 mA |
|
|
|
|
A. Execution
|
A | |
---|---|---|
With not changeable insert
|
U | |
With changeable insert
|
PS | |
Spark safe with changeable insert
|
PS/Exi | |
Strengthen casing with changeable insert
|
PS/Exe | |
B. Resistor type
|
B | |
Single
|
1xPt100 | |
Double
|
2xPt100 | |
C. Accuracy class
|
C | |
B
|
B | |
A
|
A | |
1/3 B DIN
|
1/3 B DIN | |
D. Connection type
|
D | |
2 - cables
|
2p | |
3 - cables
|
3p | |
4 - cables
|
4p | |
E. Shield diameter
|
E | |
Ø4mm
|
4 | |
Ø6mm
|
6 | |
Ø8mm
|
8 | |
Ø9mm
|
9 | |
Ø10mm
|
10 | |
Ø11mm
|
11 | |
Ø12mm
|
12 | |
Ø13.7mm
|
13.7 | |
Ø15mm
|
15 | |
F. Shield length
|
F | |
L
|
give in mm | |
G. Shield material
|
G | |
1.4571
|
1.4571 | |
1.7335
|
1.7335 | |
Hastelloy C22
|
C22 | |
H. Stub pipe
|
H | |
M20x1.5
|
M20x1.5 | |
M27x2
|
M27x2 | |
G 1/2
|
G 1/2 | |
G 3/4
|
G 3/4 | |
G 1
|
G 1 | |
I. Head
|
I | |
NH (at operation temperature up to +100°C)
|
N1 | |
NA (at operation temperature up to +150°C)
|
N2 | |
B
|
B | |
K. Operation temperature
|
K | |
T
|
give in mm °C | |
L. Measurement transducer
|
L | |
give type and range in °C | ||
M. Sensor type
|
M | |
normal
|
Z | |
shockproof | W |
