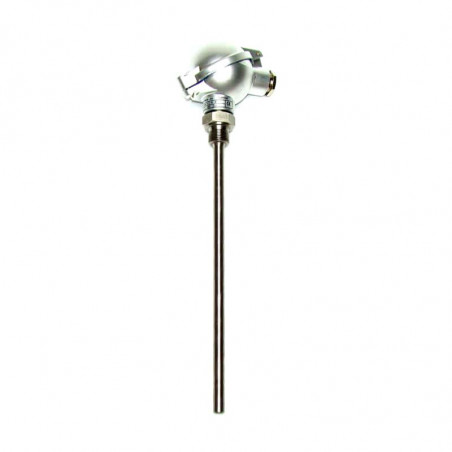

Resistant sensor with head - ACT-04

Straight resistant sensor with stub pipe is used for temperature measurement in machines, pipelines and gas or liquid containers in temperature range -200°C - +600°C. Protection pipe is made from steel 1.4571, 1.7335 and Hastelloy C22, which allows to use thermometer for aggressive media measurement. Version without stub pipe also available.


SPECIFICATION:
ModelExecutionInsert typeLength L
U With not changeable insert not changeable arbitrary
PS With changeable insert WP-OP-01/PS
PS/Exi Spark safe with changeable insert
PS/Exe Strengthen casing with changeable insert

SENSOR TECHNICAL PARAMETERS
Measurement resistorVersionCharacteristicMeasurement rangeAccuracy classMax measurement currentConnection type
1xPt100
2xPt100

normal

shockproof

wg PN-EN-60751 from -200°C
up to +600°C
B 8 mA 2 cables
A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA


Protection pipes
Diameter
d[mm]

Materials according to
WNr/ DIN

Materials according to
ASTM /AISI
Ø4,Ø6,Ø8,Ø9,Ø10, Ø11,Ø12,Ø15 1.4571 316 Ti
Ø10,Ø11,Ø15 1.7335 A182 Grade Fil
Ø13,7 Hastelloy C22 A576 Grade 1020

Stub pipe D
M20x1,5
M27x2
G 1/2"
G 3/4"
G 1”
Connection head
TypeMax operation temperatureMaterial
B +100°C Al
NA (with silicone washer) +150°C Al

Measurement transducer
according to order



Marking:

A. Execution
A

With not changeable insert
U

With changeable insert
PS

Spark safe with changeable insert
PS/Exi

Strengthen casing with changeable insert
PS/Exe
B. Resistor type
B

Single
1xPt100

Double
2xPt100
C. Accuracy class
C

B
B

A
A

1/3 B DIN
1/3 B DIN
D. Connection type
D

2 - cables
2p

3 - cables
3p

4 - cables
4p
E. Shield diameter
E

Ø4mm
4

Ø6mm
6

Ø8mm
8

Ø9mm
9

Ø10mm
10

Ø11mm
11

Ø12mm
12

Ø13.7mm
13.7

Ø15mm
15
F. Shield length
F

L
give in mm
G. Shield material
G

1.4571
1.4571

1.7335
1.7335

Hastelloy C22
C22
H. Stub pipe
H

M20x1.5
M20x1.5

M27x2
M27x2

G 1/2
G 1/2

G 3/4
G 3/4

G 1
G 1
I. Head
I

NH (at operation temperature up to +100°C)
N1

NA (at operation temperature up to +150°C)
N2

B
B
K. Operation temperature
K

T
give in mm °C
L. Measurement transducer
L
    give type and range in °C
M. Sensor type
M

normal
Z
  shockproof W
