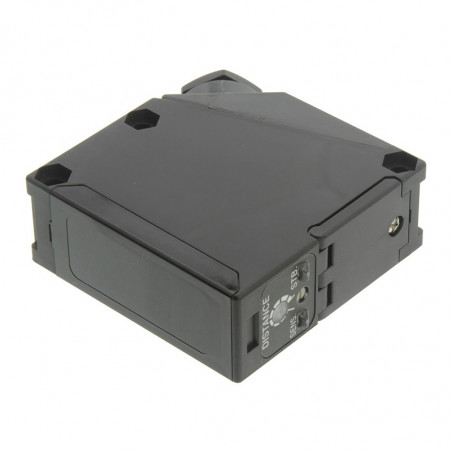

Optic sensors - eq-500 series
Optic sensors - eq-500 series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Panasonic

Optic sensors - eq-500 series

Description

• Long distance range : 100cm or 250cm
• Front and backward background cut
• Reaction time 2ms
• Transistor output NPN/PNP
• Small dimensions H68 x W26 x L68mm
• Timer function(only EQ-5#T)
• Short circuit protection
• IP67

Symbol Type Operation range Output type Power supply
EQ-502 Reflection from object with universal power supply 0,1-1 m Relay 24-240 VAC 12-240 VDC
EQ-511T Triangulate with backward influence elimination function and timer(0.1-5 sec.) 0 1 -2 5 m Transistor  NPN/PNP 12-24 VDC


Connection scheme
