Manufacturer: Flexelec

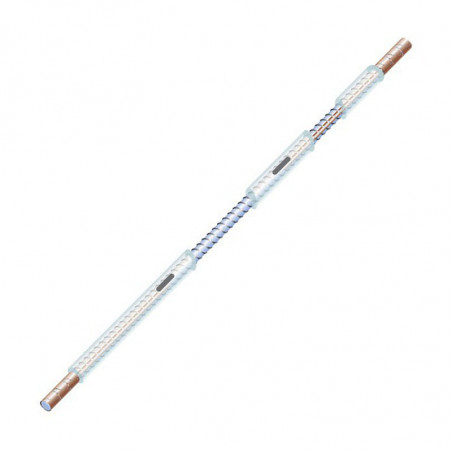

Terminated silicon insulated heating cables - CS1

Terminated silicon insulated heating cables - CS1

Applications

CS1 heating elements are mainly incorporated in household electrical or refrigeration equipment and special, mass-produced machines requiring protection against freezing or temperature maintenance. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characteristics

The main characteristic of this type of heating cable is that there is no extra thickness at the cold junction, identified with a black mark.

  • UL Recognized cables on request.


 CS1
Heating wirenickel-copper or nickel-chrome
InsultaionSilicon elastometer
Diameter2.3 ~ 3.5 mm
Max. power30 W/m
VoltageAny voltage on requestup to 500 V
Permissible surface temperaturefrom - 70°C to + 200°C
TolerancesResistance ± 10 %
Diameter + 0.2 /- 0.1 mm
Length: ± 1 %
Max. current2 A
