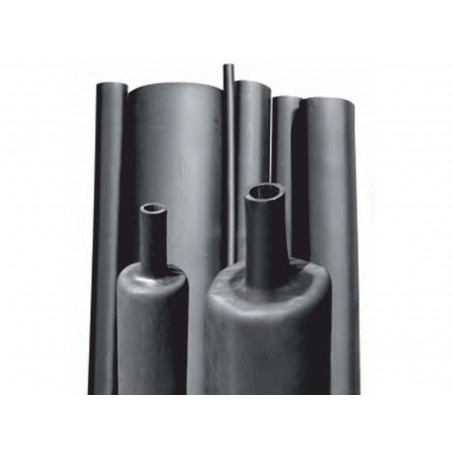

Polyolefin heat shrink tubes, ultra thin - type RUC
  • Polyolefin heat shrink tubes, ultra thin - type RUC

Photos are for informational purposes only. View product specification

Polyolefin heat shrink tubes, ultra thin - type RUC

Polyolefin heat shrink tubes, ultra thin - type RUC



Application:
Especially recommended in areas where it has meaning of fast shrinking and space savings.
The low shrink temperature reduces installation time and risk of damaging components sensitive to temperatue.

 Technical data

  • Operating temperature: from -55°C up to +125°C
  • Shrink ratio: 2:1
  • Minimum shrink temperature: +70°C
  • Standard colours: black color
  • Self-extinguishing polyolefin tubes
  • Environment-friendly
  • Ultra thin and flexible


TubeDimensions [mm]Standard length of the spool [m]
typeDds

RUC 1,4 / 0,6

1,4 0,6 0,20 200

RUC 1,9 / 0,8

1,9 0,8 0,20 100

RUC 3 / 1,2

3,0 1,2 0,25 100

RUC 3,5 / 1,6

3,5 1,8 0,25 100

RUC 5,5 / 2,4

5,5 2,4 0,25 100

RUC 6,5 / 3,2

6,5 3,2 0,28 100

RUC 10,5 / 4,8

10,5 4,8 0,28 100

RUC 13,5 / 6,4

13,5 6,4 0,28 50

RURY TERMOKURCZLIWE POLIOLEFINOWE, BARDZO CIENKIE wymiar

D - minimum internal diamtere before recovery
d - maximum internal diamtere after recovery
s - wall thickness after entire recovery

PropertiesTest methodTubes RUC
Operating temperature: IEC216 -55°C to +125°C
Tensile strength ASTM D 2671 > 14 MPa
Elongation at rupture ASTM D 2671 > 400%
Length change after shrinking UL224 0 ±5%
Elongation at rupture after heat ageing 158 °C, 168h > 300%
Inflammability test VW-1 positive
Dielectric resistance 1EC 243 > 20 kV/mm
Volume resistivity IEC93 >10" O./cm
Infuence on copper ASTM D 2671 doesn't corrode
