Manufacturer: SALTEK

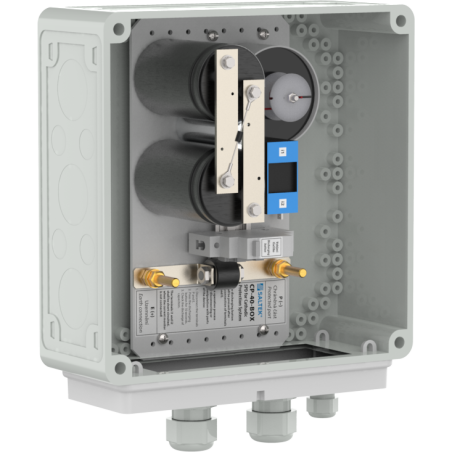

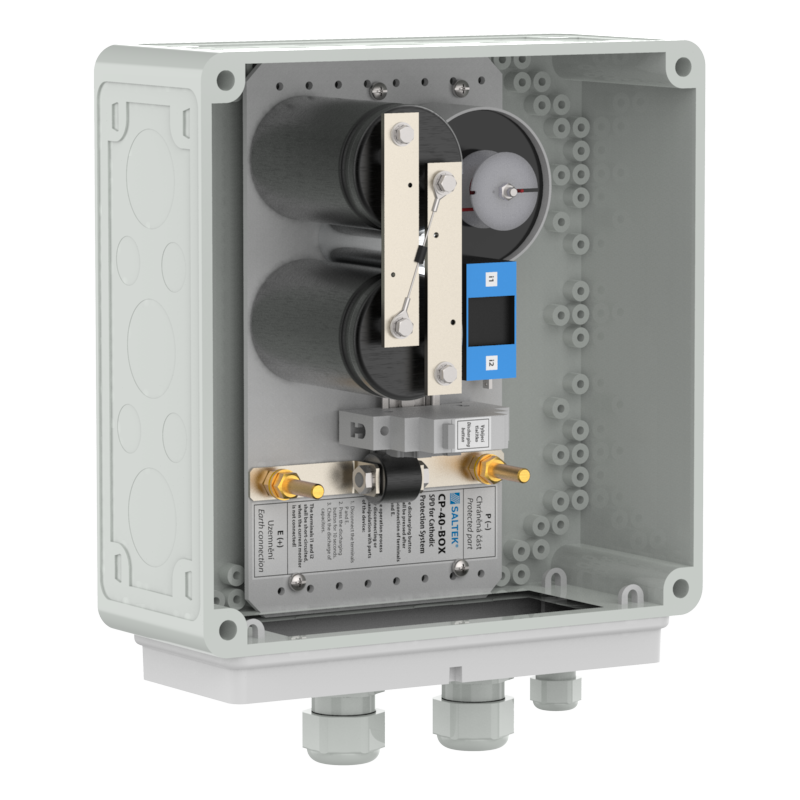

CP-40-BOX - ICCP Device

  • CP-40-BOX
  • Protection rating IP 65
Parameter name Parameter value
Maximum continuous DC operating voltage (P-E) Umax 18 V
Maximum leakage current at Umax (P-E) IL 1.0 mA
Lightning impulse current Iimp 100.00 kA
Nominal discharge current (8/20 µs) In 100.00 kA
Maximum peak AC current 1 s / 50 Hz (P-E) Imax 400 A
Maximum continuous AC current 50 Hz (P-E) IA 40 A
100 : 1
Degree of protection IP 65
Range of ambient temperatures (min/max) -25 / 80 °C
Dimensions 300 x 300 x 170 mm
Mounting surface on the desk
Customs tariff number 85363030
EAN 8595090553465
