SILIGAINE TNL FR TWIST -50°C to +150°C
SILIGAINE TNL FR TWIST -50°C to +150°C

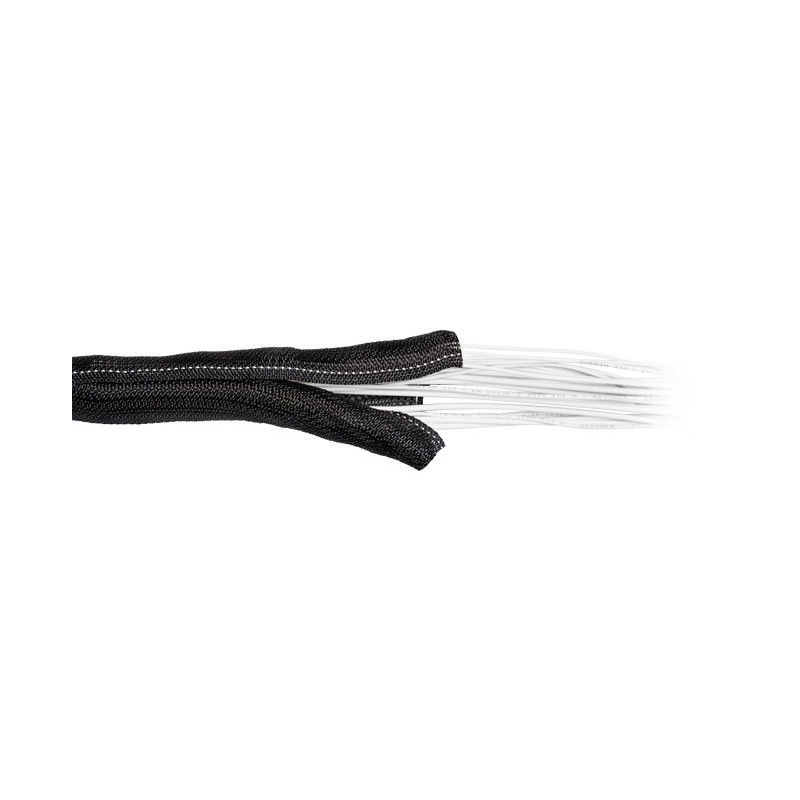

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: OMERIN

SILIGAINE TNL FR TWIST -50°C to +150°C

  • FT 9605

Standards

  • Classification R22: HL3, R23: HL3, according to EN 45545-2
  • UL 1441

Applications

  • Protection of assemblies subject to severe mechanical constraints (abrasion, cutting, alternate bendings, doorways, etc.).
  • Railway and electronic industries.

Packaging

  • Diameters from 5 to 8 mm: 50 m spools.
  • Diameters from 13 to 19 mm: 25 m spools.
  • Diameters from 25 to 38 mm: 15 m spools.

General Characteristics

  • Continuous operating temperature: -50°C to +150°C
  • Self wrapping (Quick and easy installation for assembly or maintenance)
  • Flame resistance
  • Excellent vibration resistance
  • Excellent resistance to abrasion
  • Extra light weight
  • High flexible fabric
  • Halogen-free

Recommendations

SILIGAINE® TNL FR TWIST should be tied at intervals if continuous working temperature exceeds +110°C.

Standard products

  • Colour: black with white tracer.
Part number Nominal internal diameter** (mm) Minimum internal diameter** (mm) Maximum internal diameter** (mm) Approximative linear weight (kg/km)
P0907001 5 4 5 10.1
P0907002 8 5 8 11.3
P0907003 13 10 13 17.6
P0907004 19 16 19 26.3
P0907005 25 19 25 35.4
P0907006 29 25 29 39.4
P0907007 32 29 32 43.5
P0907008 38 32 38 50.4
