Производител: Bel Power Solutions

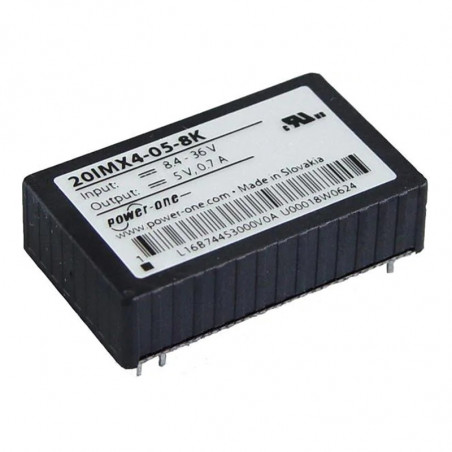

IMX 4 Тип

Impulse converters with stabilised output voltage

Technical data
Output power: 4W
Wide range of input voltage up to 121VDC
one or two outputs up to 48VDC
Galvanic insulation Input/input 5/20/40/70 IMX4 -1/1.5/1.5/2 kV DC
Output protected against short circuit
Possible parallel connection.
High operation temperature range  -40°C - 85°C
High efficiency up to 83%
Terminals For PCB

Output voltage 1
UN
[VDC]		 Output current 1
IN
[mA]		 Output voltage  2
UN
[VDC]		 Output current 2
IN
[mA]		 Input voltage range
[VDC]		 Type
3,3 900 - - 8.4...36 20 IMX 4-03-8
3,3 900 - - 16.8...75 40 IMX 4-03-8
3,3 900 - - 40...121 70 IMX 4-03-8
5 700 - - 4.7...16.8 5 IMX 4-05-8
5 700 - - 8.4...36 20 IMX 4-05-8
5 700 - - 16.8...75 40 IMX 4-05-8
5 700 - - 40...121 70 IMX 4-05-8
12 340 - - 4.7...16.8 5 IMX 4-12-8
12 340 - - 8.4...36 20 IMX 4-12-8
12 340 - - 16.8...75 40 IMX 4-12-8
12 340 - - 40...121 70 IMX 4-12-8
15 280 - - 4.7...16.8 5 IMX 4-15-8
15 280 - - 8.4...36 20 IMX 4-15-8
15 280 - - 16.8...75 40 IMX 4-15-8
15 280 - - 40...121 70 IMX 4-15-8
+5 350 -5 350 8.4...36 20 IMX 4-0505-8
+5 350 -5 350 16.8...75 40 IMX 4-0505-8
+5 350 -5 350 40...121 70 IMX 4-0505-8
+12 170 -12 170 8.4...36 20 IMX 4-1212-8
+12 170 -12 170 16.8...75 40 IMX 4-1212-8
+15 140 -15 140 8.4...36 20 IMX 4-1515-8
+15 140 -15 140 16.8...75 40 IMX 4-1515-8
+24 85 -24 85 8.4...36 20 IMX 4-2424-8
+24 85 -24 85 16.8...75 40 IMX 4-2424-8
