Производител: SALTEK

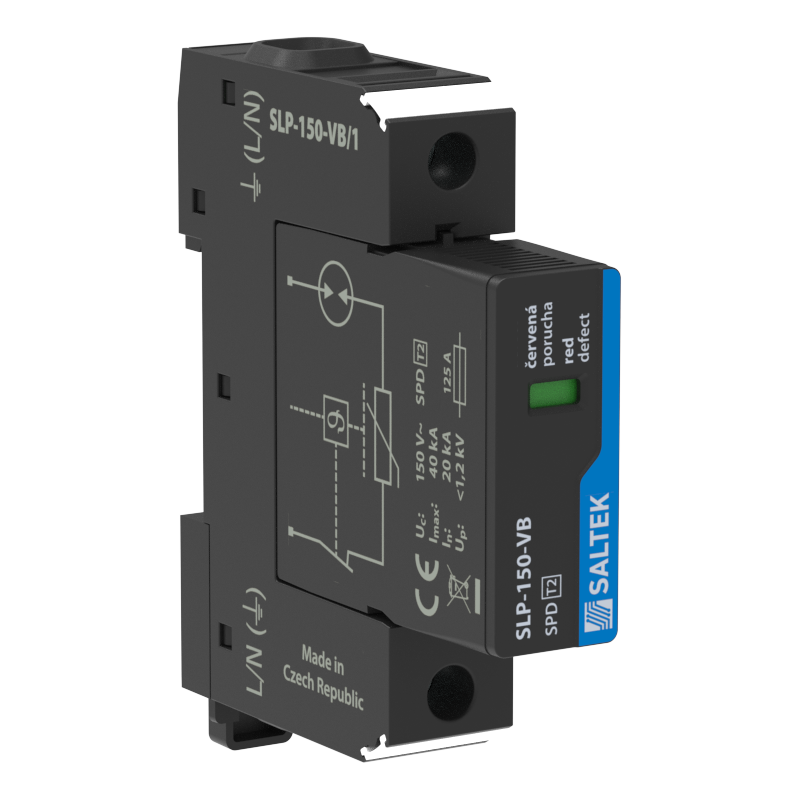

SLP-150-VB/1 - Ограничител на пренапрежение (SPD)

  • SLP-150-VB/1
  • Номинално напрежение 100, 115, 120, 127 V AC
  • Ниво на защита IP 20
  • Тип SPD T2
  • Тип мрежа TN
  • Дистанционна индикация no
  • Максимално работно напрежение 150.00 V AC
Parameter name Parameter value
Type of SPD T2
Mounting DIN rail 35 mm
Nominal voltage Un 100, 115, 120, 127 V AC
Maximum operating voltage Uc 150.00 V AC
Maximum operating voltage Uc 120.00 V DC
Type of network TN|TT
Maximum overcurrent protection 125 A gL/gG
Short-circuit current rating ISCCR 50.0 kA
Residual current IPE 0.002 mA
Nominal discharge current (8/20 µs) In 20.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 1.20 kV
Response time ta 100 ns
TOV 5 s L-N 185 V
TOV characteristic (TOV 5 s) withstand
TOV 120 min L-N 242 V
TOV characteristic (120 min) withstand
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Fault indication red indication field
Remote indication no
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000941
Plug module SLP-150-VB/0
Customs tariff number 85363030
EAN 8595090570530
