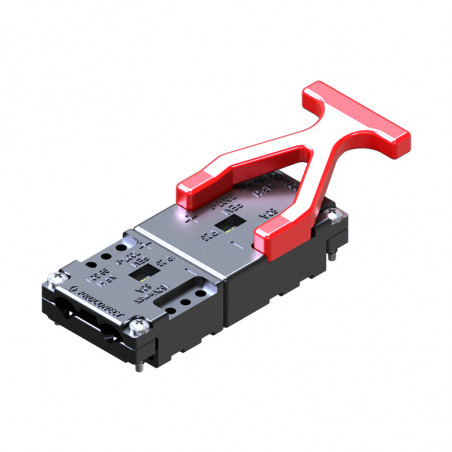

NF 80 конектор за батерии
  • NF 80 конектор за батерии

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Proconect

NF 80 конектор за батерии

Battery connector NF 80

Characterictics:

  • Voltage: 150V DC max
  • Amperage: 80A
  • Temperature range: -20°C / +90°C
  • Housing: acidproof plastic
  • Contacts: copper alloy, silver plated, (to crimp or to solder)
  • Amperage of auxiliary contact: 20 A
  • Section of auxiliary contact: 2,5 mm2 i 4 mm2
  • Watertightness: IP23
  • Normes: NF EN 1175-1 and DIN VDE 0623-589

Complete connectors:

  Ref. Description Section
mm2 AWG
Connector 169081 Male 16 6
169082 Male 25 4
Connector 169083 Female 16 6
169084 Female 25 4
Auxiliary contacts 169085 Male - 20 A 2.5 14
169086 Female - 20 A 2.5 14
Handle 169087 Red color -

Spare parts:


 Ref.
 Description
 Section
mm2 AWG
Connector 169094 Męski 16 6
169095 Męski 25 4
Connector 169096 Żeński 16 6
169097 Żeński 25 4
Housing 169092 Wtyk męski -
169093 Gniazdo żeńskie -
Voltage coding key 169088 Kolor czarny tradycyjny akumulator -
169089 Kolor szary żelowy akumulator -

NF 80 Male

NF 80 Female

NF 80 connector
