Производител: Proconect

Конектор на кобчетата

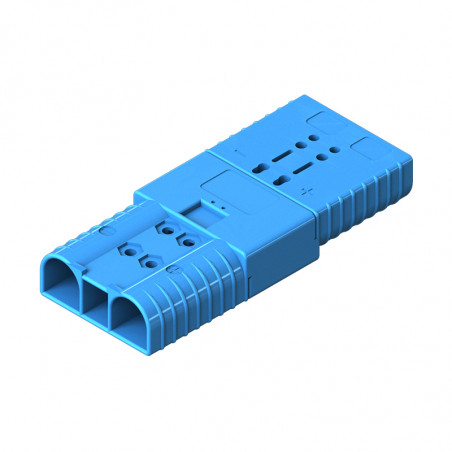

Battery connector Series CBE

Characteristics

  • Voltage: 600V max.
  • Amperage: 160 A, 320 A
  • Temperature range: -40° / + 120° C
  • Housing: polycarbonate or polyamide acids, bases and hydrocarbons proof
  • Contacts: electrolytic copper, galvanic silvering, anti-corrosion protection (to crimp or to solder)
  • Springs: stainless steel

  Grey Blue Orange Yellow Red Green Black Section:
mm2 AWG
CBE 160 159110
159111		 159120
159121		 159130
159131		 - 159150
159151		 159160
159161		 159190
159191		 50
35		 1/0
2
+ set of 2 auxiliary constacts 159113 159123 159133 - 159153 159163 159193 50 1/0
CBE 320 159410 159420 - 159440 159450 159460 159490 70 2/0
+ set of 2 auxiliary constacts 159413 159423 - 159443 159453 159463 159493 70 2/0

Handle:

  Ref. Color
CBE 160 165370 Red
165380 Grey
CBE 320 165371 Red
165381 Grey

Spare parts:

  CBE 160 CBE 320
Housings:
Grey 166310 166420
Blue 166311 166421
Orange 166312 -
Yellow 166313 166423
Black 166314 166424
Green 166315 166425
Black 166316 166426
Other:
Set of 2 contacts 35 mm2 166131 -
Set of 2 contacts 50 mm2 166130 -
Set of 2 contacts 70 mm2 - 166340
Reducer 50 mm2 / 25 mm2 166133 -
Auxiliary contacts 2,5 mm2 159300 159300
Air contacts 159350 159300

CBE 160

CBE 320
