Производител: Proconect

Безжични Y серия

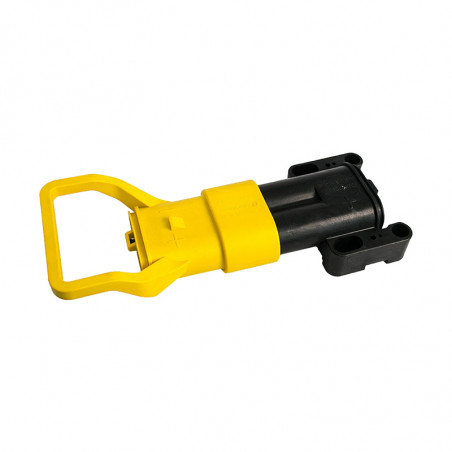

Battery connector Series Y



Characterictics

  • Voltage: 150V max
  • Amperage: 250A
  • Temperature range: -40° / + 125° C
  • Housing: polyamid, acids proof
  • Contacts: copper alloy, (to crimp or to solder)
  • Cable section: 50mm² (AWG 1/0)
  • Amperage of auxiliary contact: 20 A
  • Section of auxiliary contact: 2,5 mm2
  • Watertightness: IP 54 (with accessories)



Complete connectors:

  Without auxiliary contact With auxiliary contact Auxiliary contacts Self closing cover Teat Plug seal
Socket 149312-N 149322-N 165139-N - - -
Socket IP54 149313* 149323* - 149312-C 149312-T -
Plug 149332-N 149342-N 165140 - - -
Plug IP 54 149334** 149344** - - 149312-T 149312-T

*with self closing cover and teat

**with teat and plug seal

Spare parts:

  Ref. Description Section
mm2 AWG
Contact 166152-N Set of 2 male contacts 50 1/0
166162-N Set of 2 female contacts 50 1/0
Housing 156672-N Female -
152191-N Male

Y Male

Y Female
