Производител: DetasUltra

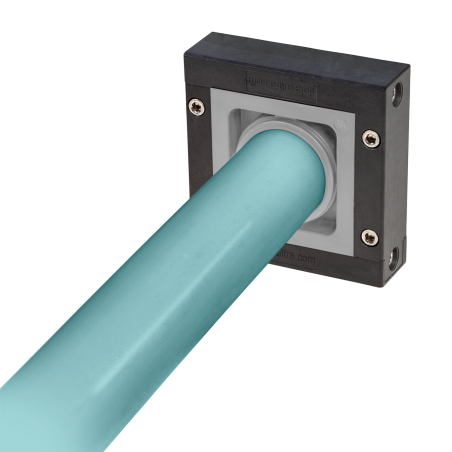

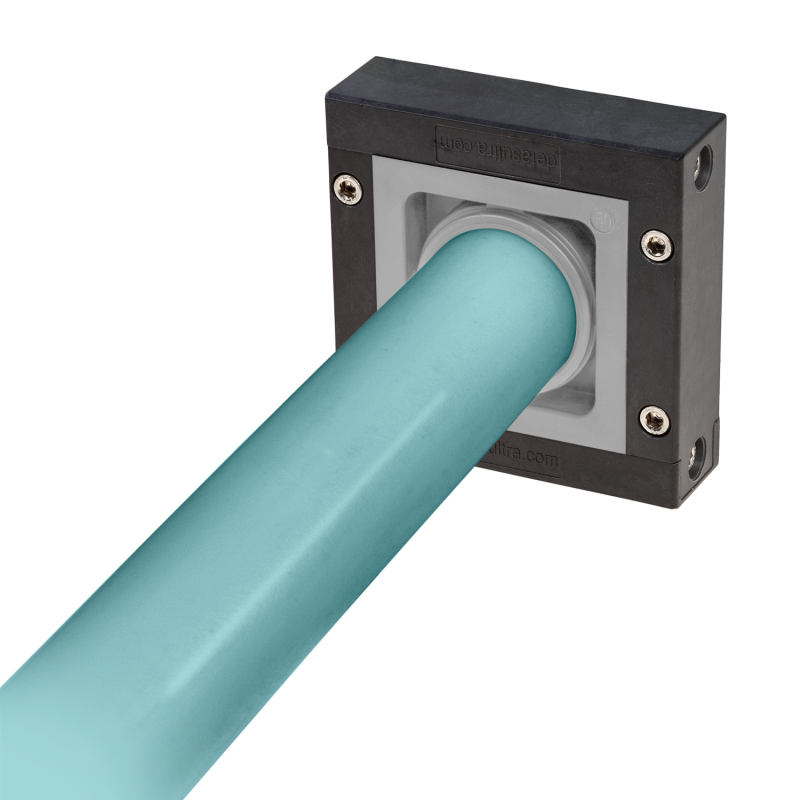

DES 380M - Рамки за кабелни входове

  • 1731010270
  • Размери 116 x 116
  • Дупка 72 x 72
  • Вид продукт Modułowe przepusty kablowe

DES 380M splittable frames are used to secure cables of large cross sections at the entrance of switchboards or electrical equipment, ensuring fluidic and mechanical sealing.

  • Fast and easy fixing of big diameter cables and corrugated pipes
  • Diameters from 36 to 65 mm
  • Free installation on 4 sides
  • IP54
  • Robust construction IK10
  • No gasket required
  • AISI 304 screws
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES 380M 1731010270 72 x 72 116 x 116
