Producător: DetasUltra

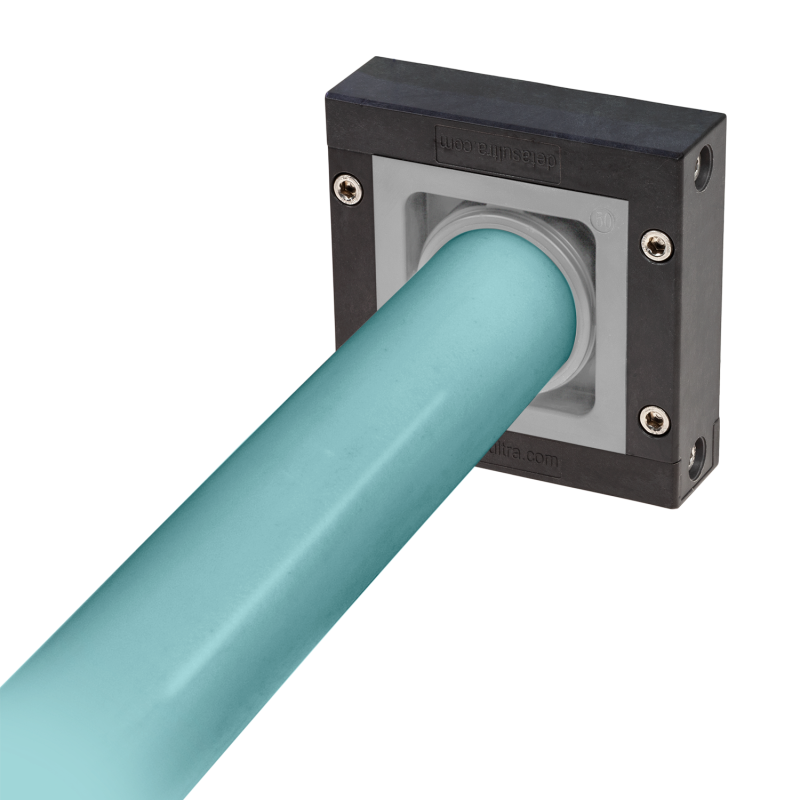

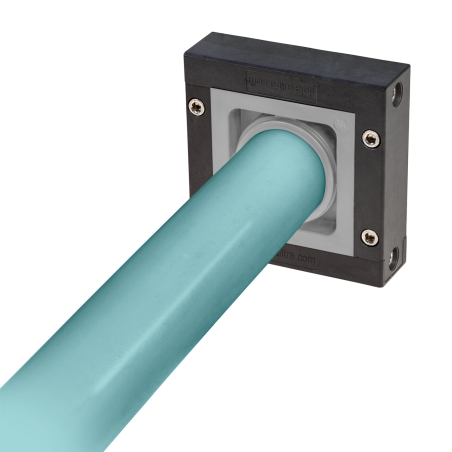

DES 380M - Rame de intrare pentru cabluri

  • 1731010270
  • Tip de produs Presetupe modulare
  • Dimensiuni 116 x 116
  • Gaură 72 x 72

DES 380M splittable frames are used to secure cables of large cross sections at the entrance of switchboards or electrical equipment, ensuring fluidic and mechanical sealing.

  • Fast and easy fixing of big diameter cables and corrugated pipes
  • Diameters from 36 to 65 mm
  • Free installation on 4 sides
  • IP54
  • Robust construction IK10
  • No gasket required
  • AISI 304 screws
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES 380M 1731010270 72 x 72 116 x 116
