Производител: DetasUltra

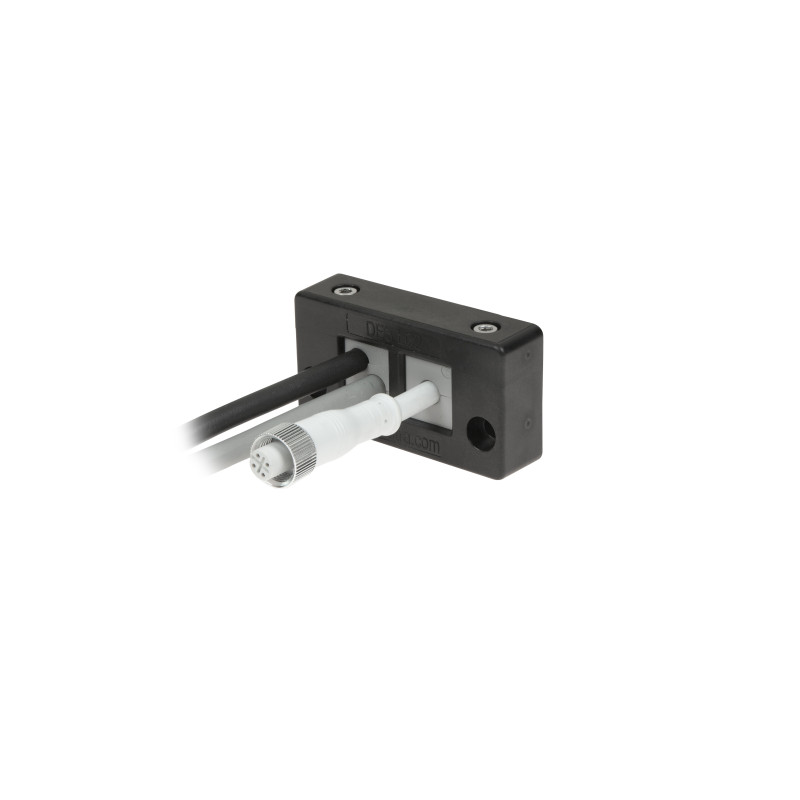

DES LC3 - Рамки за кабелни входове

  • 1731010333
  • Дупка 62 x 20
  • Вид продукт Modułowe przepusty kablowe

DES LC5, LC4, LC3 and LC2 splittable frames are used with SPC grommets.

  • Can be used with SPC small grommets.
  • Closure with screws, overmolded nuts.
  • Strain relief according to EN 62444
  • Compact dimensions
  • IP54 protection
  • Does not require external gasket.
  • Complete system according to UL94-V0
  • Material: PP+GF, halogen and silicone free
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
Model Code Max. opening [mm]
DES LC2 1731010332 40 x 20
DES LC3 1731010333 62 x 20
DES LC4 1731010334 83 x 20
DES LC5 1731010335 110 x 20

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас
ПОИСКАЙТЕ ПРОДУКТА close
Благодарим ви, че изпратихте съобщението си. Ние ще отговорим възможно най-скоро.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед

Добави към списъка с желания

Трябва да сте влезли

  • Дупка 62 x 20
  • Вид продукт Modułowe przepusty kablowe

DES LC5, LC4, LC3 and LC2 splittable frames are used with SPC grommets.

  • Can be used with SPC small grommets.
  • Closure with screws, overmolded nuts.
  • Strain relief according to EN 62444
  • Compact dimensions
  • IP54 protection
  • Does not require external gasket.
  • Complete system according to UL94-V0
  • Material: PP+GF, halogen and silicone free
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
Model Code Max. opening [mm]
DES LC2 1731010332 40 x 20
DES LC3 1731010333 62 x 20
DES LC4 1731010334 83 x 20
DES LC5 1731010335 110 x 20
