Manufacturer: DetasUltra

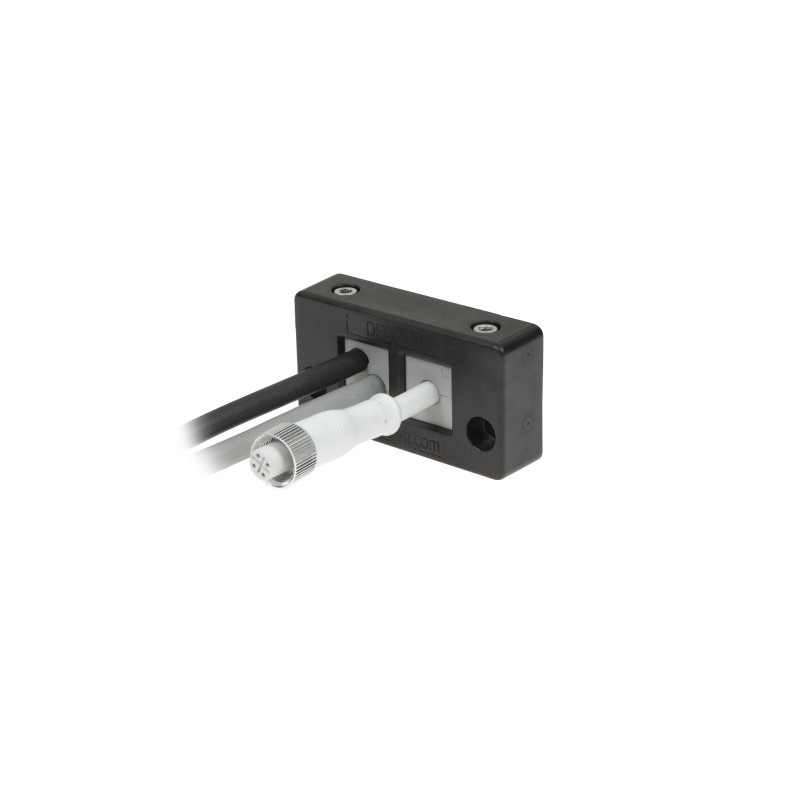

DES LC3 - Cable entry frames

  • 1731010333
  • Product Type Modular cable glands
  • Hole 62 x 20

DES LC5, LC4, LC3 and LC2 splittable frames are used with SPC grommets.

  • Can be used with SPC small grommets.
  • Closure with screws, overmolded nuts.
  • Strain relief according to EN 62444
  • Compact dimensions
  • IP54 protection
  • Does not require external gasket.
  • Complete system according to UL94-V0
  • Material: PP+GF, halogen and silicone free
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
Model Code Max. opening [mm]
DES LC2 1731010332 40 x 20
DES LC3 1731010333 62 x 20
DES LC4 1731010334 83 x 20
DES LC5 1731010335 110 x 20
