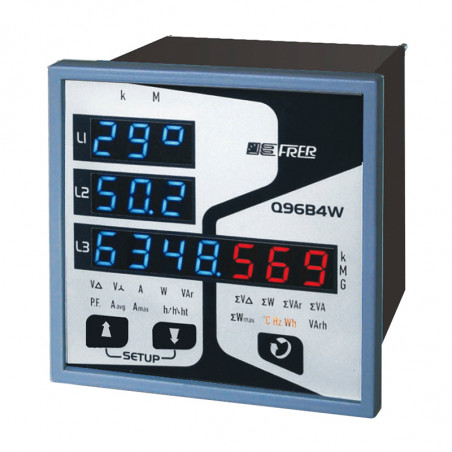

Многофункционален мрежов анализатор Q96B4W-Q15B4W
  • Многофункционален мрежов анализатор Q96B4W-Q15B4W

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FRER

Многофункционален мрежов анализатор Q96B4W-Q15B4W

Multifunction meter, suitable for three-phase three or four wires systems with unbalanced load, even with distorted waveforms. It allows the visualization of all the main characteri-stic variables of an electric network (16 variables, 32 measures) on a single unit, greatly reducing the complexity and the costs of installation.
In addition the following options are avaiable: communication data interface, 2 alarm outputs alternatively programmable as pulse outputs for active and reactive energy retran-smission.


Technical data

LED displays 3 (h. 10mm)
Decimal point position Automatic
LED Status Lighted symbols
Readings update 1 sec
Measuring type TRMS
Basic accuracy 0,5%
Nominal input voltage Un 100-400V
Nominal input current In 1-5A;
Input range 10-120% Un, 5-120% In
Operating frequency 45…65Hz
Continuous overload 2xIn; 1,2xUn
Short-term overload 20 x In; 2 x Un (1 sec.)
Current circuits consumption < 0.5VA
Voltage circuits consumption < 0.5VA
Galvanic insulation full
Power consumption 6VA
Operating temperature -10……+23……+50°C
Storage temperature -30…+70°C
Thermoplastic material UL 94V0


Aux.  Supply voltage

 Standard Va.c. (±10%, 45÷65Hz, 6VA) 115 - 230 V
On demand with extraprice Va.c. (±10%, 45÷65Hz, 6VA) 24V; 48V; 400V
Vd.c. (-15...+20%, 6W) 24V; 48V; 110V; 220V
Va.c./d.c. (6VA/6W) 20÷60V; 80÷260V

Dimensions
