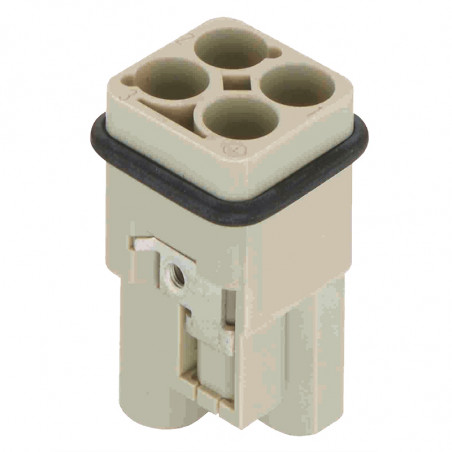

Производител: HARTING Technology Group

Картрети за Хан

Inserts Han®Q

Number of contacts2/0+2/0+2/0+2/0+
Power supply Axial screw terminal Axial screw terminal Axial screw terminal Axial screw terminal

Electrical data
acc. to EN 61 984
Power contacts

40 A 400 V 6 kV 3

40 A 400 V 6 kV 3

40 A 830 V 6 kV 3



40 A 830 V 6 kV 3
Signal contacts - - - -
Wire gauge Power contacts 4 ... 6 mm2 2,5 ... 6 mm2 4 ... 6 mm2 2,5 ... 6 mm2
Signal contacts
Male insert (M) 09 12 002 2651 09 12 002 2653 09 12 002 2652 09 12 002 2654
Female insert (F) 09 12 002 2751 09 12 002 2753 09 12 002 2752 09 12 002 2754

Number of contacts5/0+5/0+4/2+7/0+
Power supply Crimp terminal Han-Quick Lock® Crimp terminal Crimp terminal

Electrical data acc. to EN 61 984
Power contacts
16 A 230/400 V 4 kV 3
16 A 230/400 V 4 kV 3
40 A 400/690 V 6 kV 3
10 A 400 V 6 kV 3
Signal contacts - - 10 A 250 V 4 kV -
Wire gauge Power contacts 0,14 ... 2,5 mm2 0,5 ... 2,5 mm2 1,5 ... 6 mm2 0,14 ... 2,5 mm2
Signal contacts     0,14 ... 2,5 mm2
Male insert (M) 09 12 005 3001 09 12 005 2633 09 12 006 3041 09 12 007 3001
Female insert (F) 09 12 005 3101 09 12 005 2733 09 12 006 3141 09 12 007 3101

Number of contacts8/0 + 8/0 +17 + 12/0 +8/10 +
Power supply Crimp terminal Han-Quick Lock® Crimp terminal Crimp terminal/Han-Quick Lock® Han® Q Data RJ45

Electrical data acc. to EN 61 984
Power contacts
16 A 500 V 6 kV 3
16 A 500 V 6 kV 3
10 A 250 V 3		 1
0 A 400 V 6 kV 3		 -
Signal contacts - - - - 5 A 50 V 0,8 kV 3
Wire gauge Power contacts 0,14 ... 4 mm2 0,5 ... 2,5 mm2 0,14 ... 2,5 mm2 0,14 ... 2,5 mm2 0,13 ... 0,52 mm2
Signal contacts         0,13 ... 0,25 mm2
Male insert (M) 09 12 008 3001 09 12 008 2633 09 12 017 3001 09 12 012 3001 09 12 011 3001
Female insert (F) 09 12 008 3101 09 12 008 2733 09 12 017 3101 09 12 012 3101 09 12 011 3111
