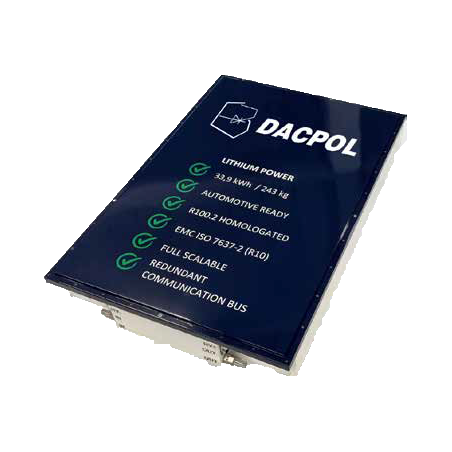

Battery Pack for Vehicles

LITHIUM POWER

Product details: Dacpol offers solutions for vehicle electrification projects such as buses, trams, trolleybuses etc. with popular types of lithium-ion technologies LFP and NMC. This new generation of the Rechargeable Battery Pack has DoD (Depth of discharge) 100% from 2500 to 6000 cycles.

Technical specifications - Battery Pack

Nominal energy 33,90 kWh
Nominal capacity 100 Ah
Usable capacity 90 Ah
Nominal voltage 333 V DC
Cut off voltage 260 V DC
Maximum voltage 375 V DC
Discharge current 100 A
Charge current 80 A
Discharge current (5 sec.) 400 A
IP protection IP 65 NA
Charging temperature 0°C to +55°C °C
Recommended temperature +10°C to +40°C
Discharging temperature -20°C to +55°C °C
Recommended temperature +10°C to +40°C
Expandability / scalability YES, full scalable system NA
Communication MODBUS/CAN/ETH NA
Supply voltage 9-36
48 On request		 V DC
Stete of charge YES, advanced SOC algorithm
SOC		 kWh
%
Cooling system water cooling / heating NA
Dimensions 820 x 1200 x 170 mm
Total weight 243 kg
Safety Rl 00.2
EMC ISO 7637-2 (RlO) UN 38.3		 NA
