Jednofázové tyristorové regulátory řady JU
Jednofázové tyristorové regulátory řady JU

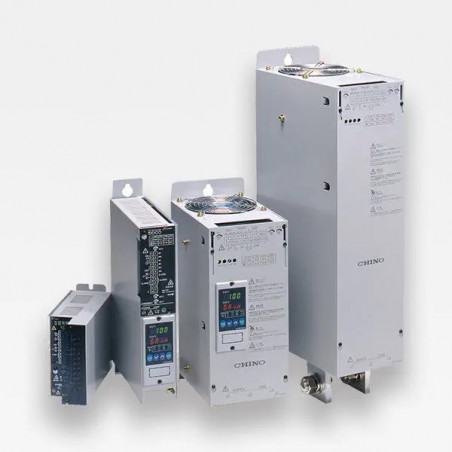

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: DACPOL SERVICE

Jednofázové tyristorové regulátory řady JU

JU series single-phase thyristor regulators

JU is a series of small and lightweight single-phase power regulators. Two control systems (phase and group) are built into the unit. The type of control is selected by means of appropriate terminals. Power control is by 4..20 mA, 1..5 V signal, potentiometer or ON-OFF type. For phase control, the controller can optionally be equipped with voltage, current or power feedback functions depending on the type of load.

Features:

  • compact construcion
  • phase control / group control
  • automatic frequency detection 50 Hz/60 Hz
  • optional operator panel - displays information about current, voltage, power, possibility to change the type of feedback
  • protection – fast fuses
  • signaling incorrect system operation


Technical data

Nominal voltage UN 400 VAC
Permissible voltage variations 90..110%UN
Nominal frequency
 50 Hz/60 Hz (automatic choice)
Nominal current
 20, 30 A
Operating temperature
 -10 ÷ 50 °C
Humidity 30..90%Rh
Insulation resistance 50 MΩ at 500 VDC (between power and ground terminals)
Dielectric strength 2500 VAC, 1 min
Feedback voltage, current, power, no feedback
Input signal* 4..20 mA DC (input res. 100 Ω),
1..5 VDC (input res. 25 kΩ),
Potenciometer 10 kΩ
ON/OFF (selectable via the terminals)
for use as a semiconductor contactor
Output voltage range
 0..98% UN
Min. current load
 0,5 A (for 98% output voltage range)
Types of loads
 resistance load, induction load
Type of control phase control and group control
(selectable by a switch)
Other functions soft start, gentle start/stop (approx. 1..20 s)
soft-start function after power failure
Weight approx. 2kg. - 20A
approx. 3kg. - 30A


Types

Type Nominal current
[A]
JU40020NA000 20
JU40030NA000 30

Attention:
*Models for other currents available on special order.



Dimensions - drawings

Dimensions [mm] - 20A
Dimensions [mm] - 30A
