Výrobce: Panasonic

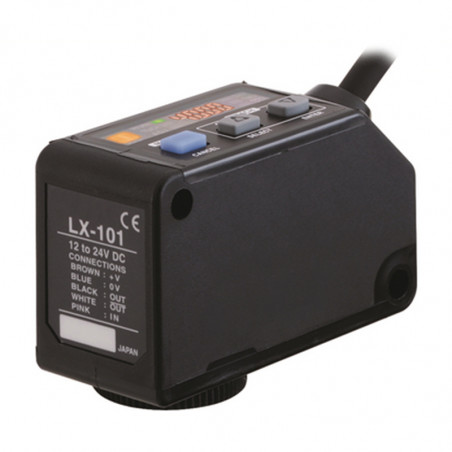

Optické senzory řady LX-100

The LX-100 series - a combined LED contrast and colour sensor - can be used both as a high-speed contrast sensor to quickly and reliably detect printer's marks, for example, and as a high-precision colour sensor.
In contrast sensing mode, the sensor automatically selects the optimum emitting LED during teach-in (static or dynamic teach-in method) from the transmitting light source (red, green and blue LEDs). With a response time of just 45#s, this sensor is perfect for high processing speeds like those required in printing presses, for example. In colour mode, an integrated microprocessor with a 12-bit A/D converter digitally processes the signals of the colour to be detected in red, green and blue primary colour components. This ensures that even the most minute colour differences or merest of tints can be accurately distinguished.

Characteristic:

  • Three different emitting LEDs (red, green, blue)
  • High precision coaxial reflective optical system
  • High resolution 12-bit A/D converter
  • 4-digit digital display
  • Teach-in for simple settings (external teaching also possible)
  • Timer function (ON/OFF-delay)
  • Two inverse outputs (cable type)
  • Compact size
  • M12 or cable type
  • IP67

Symbol Type Operation range Output type
LX-101-P Cable version 10+/-3mm Transistor PNP
LX-101-P-Z Connector version 10 +/-3 mm Transistor PNP


Connection scheme
